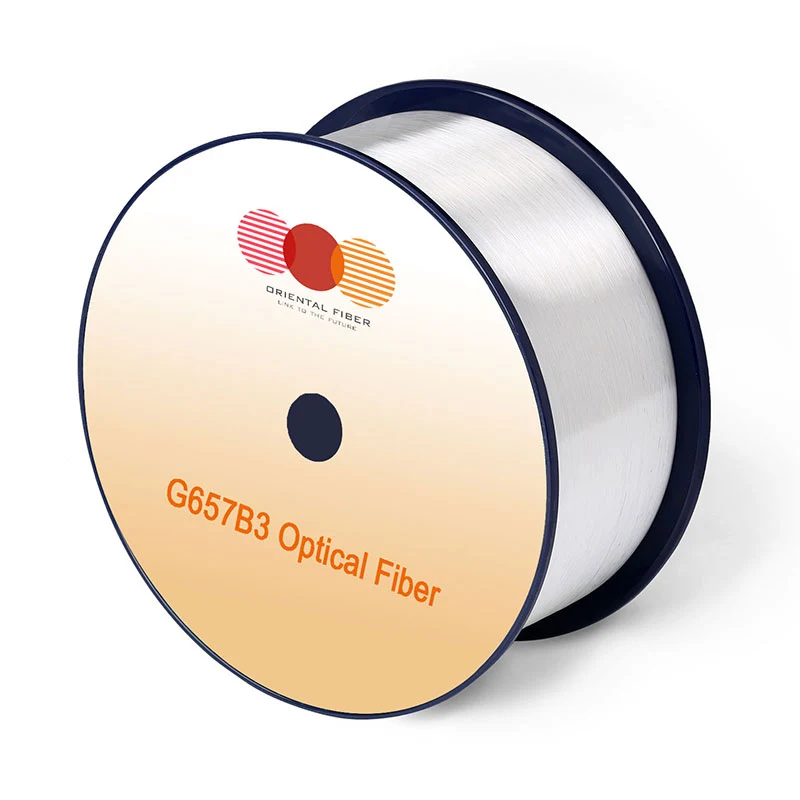

I-fiber eyodwa-mode optical fiber g.657.b3

Izici

Izimo

Speci fi ed amagugu

Amayunithi

-Phathelene nokubona Izici

I-attenuation

1310nm

≤0.35

[DB / KM]

I-1383NM (Ngemuva kokuguga kwe-H2-ubudala)

≤0.35

[DB / KM]

I-1550nm

≤0.21

[DB / KM]

1625nm

≤0.23

[DB / KM]

I-attenuation vs. wavelength

UMax. α di ff incence

1285-1330NM, IN Ukubhekiswa ku-1310nm

≤0.03

[DB / KM]

1525-1575nm, In Ukubhekiswa ku-1550nm

≤0.02

[DB / KM]

Okungekho I-Dispicerlion Wavelength (λ0)

-

1300-1324

[NM]

Okungekho I-Dispicurion Slope (S0)

-

≤0.092

[I-PS / (NM2 · KM)]

Uhlobo lwalumusa

Okusekugcineni I-fiber yomuntu ngamunye

-

≤0.1

[PS / √km]

LINK VALUE IVALULEKILE (M = 20, Q = 0.01%)

-

≤0.06

[PS / √km]

-Fana na- Thanda

-

0.04

[PS / √km]

Komhlaba I-COSTO FF Wavelength (λcc)

-

≤1260

[NM]

Umkhuba Ububanzi bensimu (MFD)

1310nm

8.2-9.0

[μm]

I-1550nm

9.1-10.1

[μm]

Inkomba yeqembu le-FF ecace of refraction (ne ff)

1310nm

1.468

-

I-1550nm

1.469

-

Khomba Izikhumbuzo

1310nm

≤0.05

[db]

I-1550nm

≤0.05

[db]

I-geometrical Izici

Udoti Ibanga elinquma phakathi ububanzi besingelezi

-

125.0 ± 0.7

[μm]

Udoti Okungeyona-nselelo

-

≤0.7

[%]

Umgwengwezi Ibanga elinquma phakathi ububanzi besingelezi

-

235-245

[μm]

Ukuhlanganisa ukuhlanganisa Iphutha lengqondo

-

≤12.0

[μm]

Umgwengwezi Okungeyona-nselelo

-

≤6.0

[%]

Ukungcola komgogodla Iphutha lengqondo

-

≤0.5

[μm]

I-Curl (Radius)

-

≥4

[m]

Ukuhambisa Ubude

-

Phezulu kuya ku-25.2

[km / reel]

Izici zemvelo

I-1310NM, 1550NM & 1625NM

Izinga lokushisa nokubanda Ukuxhomekeka kwe-atchiotion

-60 ℃ to + 85 ℃

≤0.05

[DB / KM]

Umswakama wokushisa- I-Bycling I-AtTenuation

-10 ° C kuya ku-85 ° C, 98% RH

≤0.05

[DB / KM]

Iphimbo lase-watersoak Ukuxhomekeka kwe-atchiotion

23 ° C, izinsuku ezingama-30

≤0.05

[DB / KM]

-Manzana Ukuncika kokuthambisa ukuthembeka

85 ° C kanye ne-85% RH, ngoba Izinsuku ezingama-30

≤0.05

[DB / KM]

-Omile Ukuguga kokushisa

85 ℃, izinsuku ezingama-30

≤0.05

[DB / KM]

-Omshini Speci fi cation

Ubufakazi Ukuzama

-

≥9.0

[N]

-

≥1.0

[%]

-

≥100

[KPSI]

I-Macro-Bend Ukulahleka okubandayo

1 Jika i-mandrel ye 10 mm radius

I-1550nm

≤0.03

[db]

1 Shintsha umsakazo we-mandrel eyi-10 mm

1625nm

≤0.1

[db]

1 Guqula i-mandrel ye-7.5 mm radius

I-1550nm

≤0.08

[db]

1 Jika i-mandrel ye 7.5 mm radius

1625nm

≤0.25

[db]

1 Iphenduka i-mandrel ye-5 mm radius

I-1550nm

≤0.15

[db]

1 Iphenduka i-mandrel ye-5 mm radius

1625nm

≤0.45

[db]

Umgwengwezi I-Strip Force

-fana na- Amandla aphakathi nendawo

1.5

[N]

isiqongo sentaba ukucindezela

1.3-8.9

[N]

-Namandla Ipharamitha ukukhathala (ND)

-

≥20

-
