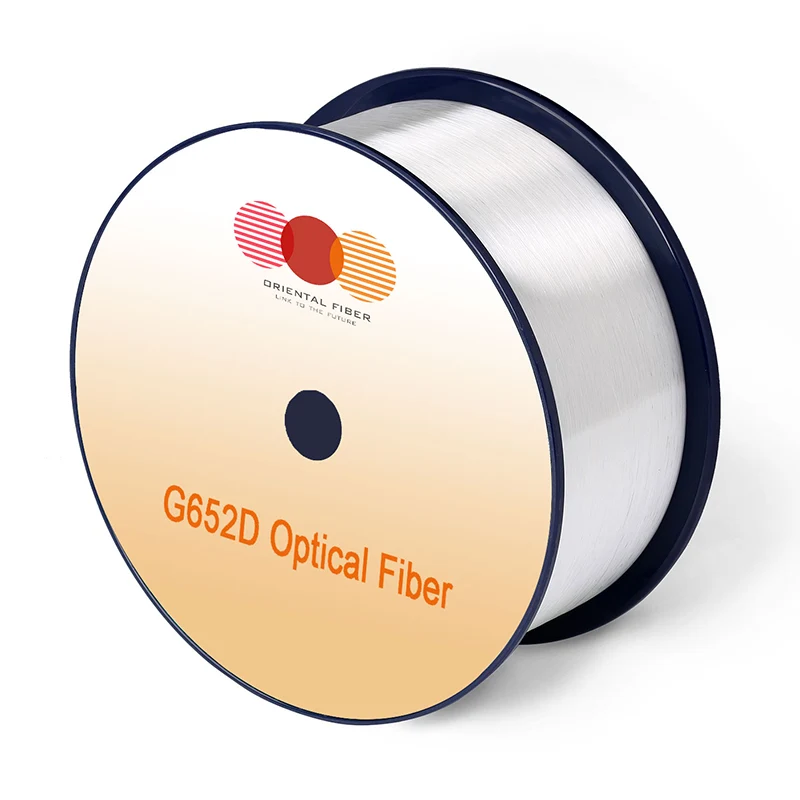

I-fiber eyodwa-mode optical fiber g.652d

Izici

Izimo

Amanani acacisiwe

Amayunithi

Izici zokubona

I-attenuation

1310nm

≤0.34

[DB / KM]

I-1383NM (Ngemuva kokuguga kwe-H2-ubudala)

≤0.34

[DB / KM]

I-1550nm

≤0.20

[DB / KM]

1625nm

≤0.24

[DB / KM]

I-Attenuation vs Wavelength

UMax. α di ff incence

1285-1330NM, ngokubhekisele ku-1310NM

≤0.03

[DB / KM]

I-1525-1575NM, Ngokubhekisele ku-1550nm

≤0.02

[DB / KM]

I-Dispersion CoE FFI Chient

1285-1340NM

-3.5 kuya ku-3.5

[I-PS / (NM · KM)]

I-1550nm

≤18

[I-PS / (NM · KM)]

1625nm

≤22

[I-PS / (NM · KM)]

I-Zero Dispion Wavengeth (λ0)

-

1300-1324

[NM]

I-Zero Displion Slope (S0)

-

≤0.092

[I-PS / (NM2 · KM)]

Inani elijwayelekile

-

0.086

[I-PS / (NM2 · kM]

Uhlobo lwalumusa

Ubukhulu beficu yomuntu ngamunye

-

≤0.1

[PS / √km]

LINK VALUE IVALULEKILE (M = 20, Q = 0.01%)

-

≤0.06

[PS / √km]

Inani elijwayelekile

-

0.04

[PS / √km]

Cable cuto ff wavelength (λcc)

-

≤1260

[NM]

Imodi ye-Mode Field (MFD)

1310nm

8.7-9.5

[μm]

I-1550nm

9.8-10.8

[μm]

Inkomba yeqembu le-FF ecace of refraction (ne ff)

1310nm

1.466

-

I-1550nm

1.467

-

I-Point Dreamineits

1310nm

≤0.05

[db]

I-1550nm

≤0.05

[db]

Izici zejometri

UCladding Ububanzi

-

125.0 ± 0.7

[μm]

Cladding non-isikrini

-

≤1.0

[%]

I-Coaing Ububanzi

-

235-250

[μm]

Iphutha le-coating accuricity

-

≤12.0

[μm]

Ukuhlanganisa okungekhona

-

≤6.0

[%]

Iphutha le-Core-Cladring Cladricity

-

≤0.6

[μm]

I-Curl (Radius)

-

≥4

[m]

Ubude bokulethwa

-

Kufika ku-50.4

[km / reel]

Izici zemvelo

I-1310NM, 1550NM & 1625NM

Ukuncika kokushisa ukuncika kwe-atchiotion

-60 ℃ to + 85 ℃

≤0.05

[DB / KM]

Umswakama wokushisa-umswakama we-cycling odonswayo

-10 ° C kuya ku-85 ° C, 98% RH

≤0.05

[DB / KM]

Ukuncika kokucwiliswa kwamanzi kuncibilika

23 ° C, izinsuku ezingama-30

≤0.05

[DB / KM]

Ukuncika kokushisa okushisayo kuncibilika

85 ° C no-85% RH, izinsuku ezingama-30

≤0.05

[DB / KM]

Ukuguga okushisayo okulomile

85 ℃, izinsuku ezingama-30

≤0.05

[DB / KM]

Ukucaciswa kwemishini

Ukuhlolwa kobufakazi

-

≥9.0

[N]

-

≥1.0

[%]

-

≥100

[KPSI]

I-Macro-Bell AtTeNation

I-100 ijika izungeze i-mandrel ye-30 mm radius

1625nm

≤0.05

[db]

I-100 ijika izungeze i-mandrel ye-25 mm radius

I-1310NM ne-1550NM

≤0.05

[db]

1 Jika i-mandrel yemisebe engu-16 mm

I-1550nm

≤0.05

[db]

I-coating strip Force

Amandla ajwayelekile aphakathi

1.5

[N]

I-Peak Force

1.3-8.9

[N]

Ipharamitha yokukhathala enamandla (ND)

-

≥20

-
