Ikhebuli ye-Fiber Optic Yezinjongo Eziningi (≤24f)

Ikhebula le-Orientalfiber Multi-Purpose Distribution Fiber Optic Cable (≤24F) isebenzisa i-Φ900μm i-fiber-retardant tight-buffered fibre ene-aramid reinforcement kanye ne-PVC noma i-LSZH yokudlulisa okuthembekile kwangaphakathi. Njengomkhiqizi nomnikezeli wekhebula le-fiber optic wase-China, i-Orientalfiber inikeza izixazululo ezihlala isikhathi eside ze-fiber optic cable ye-FTTH, izikhungo zedatha, amanethiwekhi okuxhumana ngocingo namaphrojekthi ahlelekile wokuhlanganisa amakhebula nge-OEM/ODM nokusekelwa okuthe xaxa.

Thumela Uphenyo

Incazelo Yomkhiqizo

Ikhebuli yethu yekhwalithi ephezulu ye-Multi-Purpose Distribution Fiber Optic (≤24f) yonke yenziwe e-China. I-Orientalfiber ingumkhiqizi nomnikezeli we-Multi-Purpose Distribution Fiber Optic Cable (≤24f) e-China. Ungawathenga efektri yethu. Ukuze uthole ulwazi olwengeziwe, xhumana nathi manje.

Izici

I-fiber yebhafa eqinile kulula ukuyikhumula

I-tight buffer fiber inokusebenza okuhle kakhulu kwe-flame-retardant

Intambo ye-Aramid njengelungu lamandla yenza ikhebula libe namandla aqinile okuqinile

Izinto ezingaphandle azikwazi ukugqwala, azikwazi ukumelana namanzi, azikwazi ukumelana ne-UV, azikwazi ukumelana namalangabi futhi azihambisani nemvelo.

Izinhlelo zokusebenza

Ngaphakathi kwanoma iyiphi injongo ukusatshalaliswa kwekhebula

Ikhebuli yokusabalalisa yomgogodla

I-multi-optical fiber jumper

Amazinga

Hlangana nezindinganiso ze-YD/T 1258.4, ICEA-596, GR-409, IEC 60794-2-20/21, njll. Ngaphezu kwemikhiqizo evamile ye-PVC, kukhona nemikhiqizo edlulise izitifiketi ze-ULOFNR ne-OFNP: Imikhiqizo ye-LSZH isebenzisa izinto ezahlukene ukuze ihlangabezane ne-IEC1603362-IEC1603362.

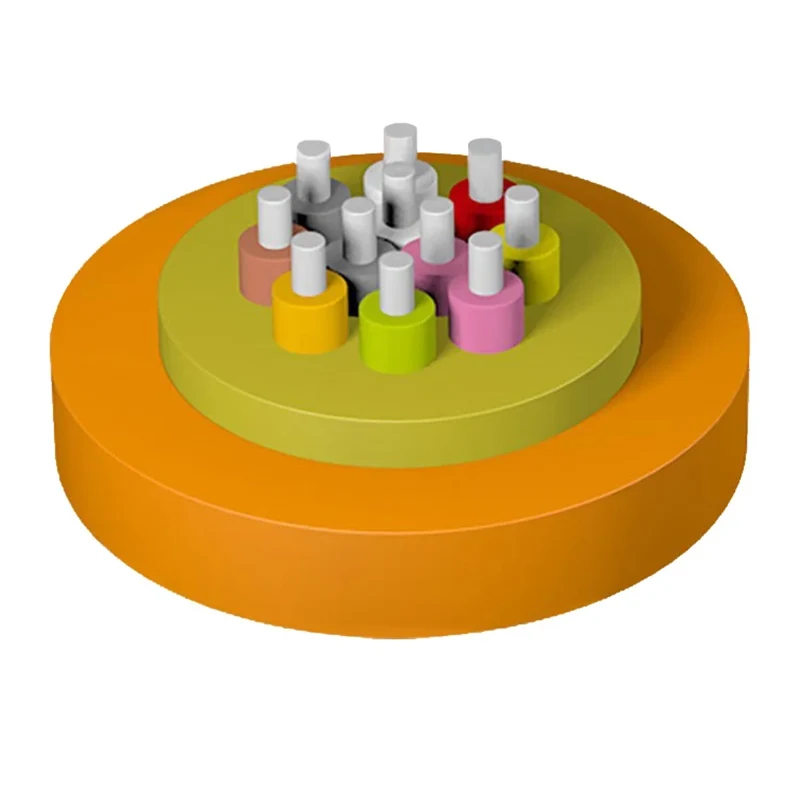

Umdwebo Wesakhiwo

1. Ibhafa Eqinile

2. Intambo ye-Aramid

3. Ibhantshi

Multi-Purpose Distribution Fiber Optic Cable (≤24f)

Imingcele Yezobuchwepheshe

Imodeli Yekhebula	Ububanzi Bekhebula (Ref) (mm)	Isisindo sekhebula (Ref) (kg/km)		Amandla Okuqina Isikhathi Eside/Esifushane (N)	I-Crush Resistance Isikhathi Eside/Esifushane (N/100mm)	Ukugoba Irediyasi I-Dynamic/Static (mm)
Imodeli Yekhebula	Ububanzi Bekhebula (Ref) (mm)	PVC Jacket	Ijakhethi ye-LSZH	Amandla Okuqina Isikhathi Eside/Esifushane (N)	I-Crush Resistance Isikhathi Eside/Esifushane (N/100mm)	Ukugoba Irediyasi I-Dynamic/Static (mm)
04	4.8±0.3	16	18	130/440	300/1000	20D/10D
06	5.1±0.3	20	23	130/440	300/1000	20D/10D
08	5.6±0.3	27	31	130/440	300/1000	20D/10D
12	6.2±0.3	32	36	130/440	300/1000	20D/10D
24	8.1±0.3	53	57	200/660	300/1000	20D/10D

Izimpawu ze-Optical

Uhlobo lweFiber	Ukunciphisa				OFL	Umkhawulokudonsa wemodi esebenzayo	10 Gbit/s Ethernet Ubude besixhumanisi	Ubuncane be-Bend Radius
Isimo	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
Isimo	Inani Elijwayelekile	Inani eliphezulu	Inani Elijwayelekile	Inani eliphezulu	850/1300nm	850nm	850nm	/
Iyunithi	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
I-G652D	0.36/0.22	0.5/0.4	---	---	---	---	---	16
I-G657A1	0.36/0.22	0.5/0.4	---	---	---	---	---	10
I-G657A2	0.36/0.22	0.5/0.4	---	---	---	---	---	7.5
50/125	---	---	3.0/1.0	3.5/1.5	≥500/500	---	---	30
62.5/125	---	---	3.0/1.0	3.5/1.5	≥200/500	---	---	30
OM3	---	---	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4	---	---	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30
