I-Multi-inhloso yokuhambisa i-fiber optic ikhebula (≥24f)

I-Multi-inhloso yokuhambisa i-Fiber Optic Cable (≥94F) isebenzisa amayunithi amancane aphezulu (φ900μm-buffered-buffered ama-fiber we-optical, ama-an-compferement appest), i-computer ye-oplortal central ukuqiniswa, i-polyvinyl chloride (PVC) noma intuthu ephansi Izinto ze-zero-halogen (LSZH, ishentu eliphansi, i-halogen-free, flame-retardant) sheath ikhishwe ngaphandle.

Thumela Uphenyo

Incazelo Yomkhiqizo

Izici

Isakhiwo selungu elingelona lensimbi elingenangqondo liqinisekisa ukuthi ikhebula likhuthazela amandla amakhulu ashukumisayo

I-Fight Buffer Fiber inokusebenza okuhle kwe-flame-retardant

I-Aramid yarn njengelungu elinamandla lenza ikhebula libe namandla amahle kakhulu

Izinto zangaphandle zivimbela ukuthuthumela, zingavimbi manzi, i-uv-retardant, ilangabi - i-retardant kanye nemvelo enobungane bemvelo.

Izinja

Ukusatshalaliswa kwekhebula

Intambo yokusabalalisa emuva ye-backbone esakhiweni

I-Multi Optical fiber patchcord

Amazinga

Hlangana namazinga we-yd / t 1258.4, i-ICA-596, i-GR-4096, i-IEC 607794-20 / 21, njll. Ngaphezu kwemikhiqizo esedlule izitifiketi ze-Ul of nenn. Imikhiqizo ye-LSZH Sebenzisa izinto ezahlukahlukene ukuze uhlangane neEC60332-1 noma i-IEC60332-3C.

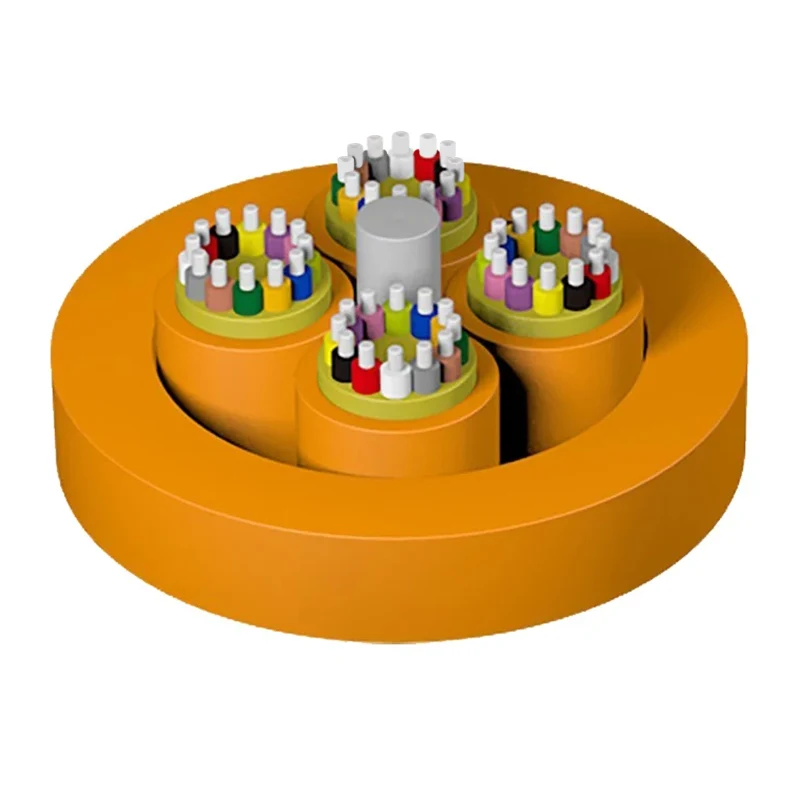

Ukwakheka umdwebo

1. I-fiber

2. I-Sub-unit

I-3. I-Aramid Yarn

4. Ilungu eliphakathi lamandla

5. Ijacket

Multi-Purpose Distribution Fiber Optic Cable (≥24f)

Amapharamitha Ezobuchwepheshe

Imodeli yekhebula	Ububanzi bekhebula (ref) (mm)	Isisindo sekhebula (Ref) (kg / km)		Amandla asheshayo Isikhathi eside / esifushane (N)	Ukuchoboza ukumelana Isikhathi eside / esifushane (N / 100mm)	Ukugoba Radius Dynamic / Static (mm)
Imodeli yekhebula	Ububanzi bekhebula (ref) (mm)	Ijekethi ye-PVC	Ijekethi ye-lszh	Amandla asheshayo Isikhathi eside / esifushane (N)		Ukugoba Radius Dynamic / Static (mm)
24	12.3 ± 0.5	117	124	200/660	300/1000	20D / 10D
36	14.5 ± 0.5	171	180	200/660	300/1000	20D / 10D
48	14.8 ± 0.5	161	170	400/1320	300/1000	20D / 10D
72	17.5 ± 0.5	244	254	400/1320	300/1000	20D / 10D
96	20.7 ± 0,5	351	366	400/1320	300/1000	20D / 10D
144	24.8 ± 0.5	443	451	400/1320	300/1000	20D / 10D

Izici zokubona

Uhlobo lwefayibha	I-attenuation				Kabanzi	Imodi ye-bandwidth ephumelelayo	I-10 gbit / s ethernet	Umsakazo omncane wokugoba
Into efunekayo	1310 / 1550nm		850 / 1300nm		850 / 1300nm	I-850nm	I-850nm	/
Inani elijwayelekile	Inani eliphezulu	Inani elijwayelekile	Inani eliphezulu		850 / 1300nm	I-850nm	I-850nm	/
Umuvo	db / km	db / km	db / km	db / km	MHz.km	MHz.km	m	m
G652d	0.36 / 0.22	0.5 / 0.4	---	---	---	---	---	16
G657a1	0.36 / 0.22	0.5 / 0.4	---	---	---	---	---	10
G657a2	0.36 / 0.22	0.5 / 0.4	---	---	---	---	---	7.5
50/125	---	---	I-3.0 / 1.0	3.5 / 1.5	≥500 / 500	---	---	30
62.5 / 125	---	---	I-3.0 / 1.0	3.5 / 1.5	≥200 / 500	---	---	30
U-m3	---	---	I-3.0 / 1.0	3.5 / 1.5	≥1500 / 500	≥2000	≤300	30
U-m4	---	---	I-3.0 / 1.0	3.5 / 1.5	≥3500 / 500	≥4700	≤550	30

Ukuhamba / Isitoreji / Ukusebenza Kwezinga lokushisa: -20 ℃ - + 60 ℃, lokushisa lokufaka: -5 ℃ - + 50 ℃

Multi-Purpose Distribution Fiber Optic Cable (≥24f)
