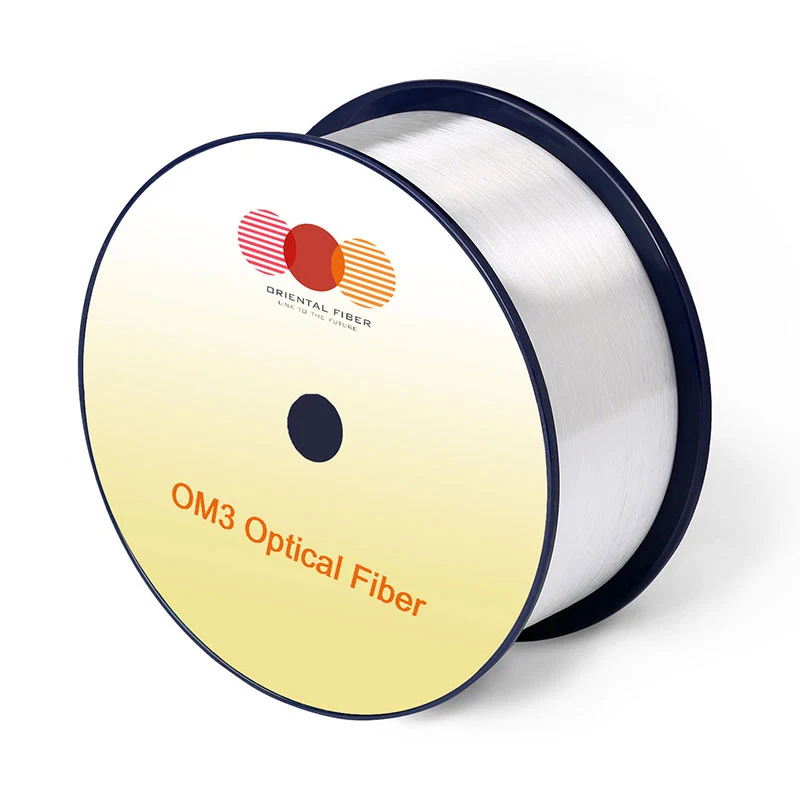

I-Multi-Mode Optical Fiber OM2+/OM3

I-Orientalfiber Multi-mode Optical Fiber OM2+/OM3 yakhelwe ukudluliselwa kwebanga elifushane ukuya kwebanga eliphakathi nendawo ezindaweni zesimanje zenethiwekhi. Njengomkhiqizi nomphakeli waseShayina, i-Orientalfiber inikeza i-Multi-mode Optical Fiber OM2+/OM3 ngokusebenza kwe-laser-optimized ku-850nm, isekela izinhlelo zokusebenza ze-Ethernet kufika ku-100Gbps, ikakhulukazi esetshenziswa kabanzi ekusetshenzisweni kwe-Gigabit Ethernet engu-10 kuzo zonke izikhungo zedatha namanethiwekhi ebhizinisi.

Thumela Uphenyo

Incazelo Yomkhiqizo

I-Multi-Mode Optical Fiber OM2+/OM3 inobubanzi obungu-50μm obuyisisekelo kanye ne-aqua blue sheath yangaphandle ukuze ikhonjwe kalula. Ilungiselelwe ukusetshenziswa nemithombo ye-laser engu-850nm VCSEL, okuyenza ibe ukukhetha okuvamile kumasistimu okuxhumana kwedatha anesivinini esikhulu. Uma kuqhathaniswa nemicu ye-multimode evamile, lo mkhiqizo uthuthukisa umkhawulokudonsa futhi wehlise ukuhlanekezela kwesignali, usize ukugcina ukusebenza kokudlulisela okuzinzile.

Amazinga & Ukuhambisana

I-Orientalfiber Multi-Mode Optical Fiber OM2+/OM3 ihlangabezana noma idlula izindinganiso zamazwe ngamazwe ezilandelayo:

ISO/IEC 11801-1 OM3
I-IEC 60793-2-10 A1-OM3
I-TIA-492AAAF A1-OM3

Izici Ezibalulekile Ngombono Wokuthenga

Kwenzelwe Imithombo Yokukhanya engu-850nm VCSEL
I-Multi-mode Optical Fiber OM2+/OM3 yakhelwe ngokuqondile ukudlulisa okungu-850nm VCSEL, iqinisekisa ukuhlangana kwesignali okuphumelelayo kanye nokudluliswa kwedatha okuzinzile kwesivinini esikhulu ezinhlelweni ze-Ethernet.

Isekela i-High-Speed Ethernet kufika ku-100Gbps
Le fibre isekela izindinganiso ezihlukahlukene ze-Ethernet ezingaphansi kwe-100Gbps, ne-10G Ethernet ibe enye yezinhlelo zokusebenza ezivame kakhulu, okwenza ifaneleke kokubili ukuthunyelwa kwamanje kanye nokuthuthukiswa okuseduze.

Ukuvumelana Okusemuva Kokuhlanganiswa Okuguquguqukayo
Ihambisana ne-OM2+, OM3, kanye ne-OM4 imicu ye-multimode, evumela ukuhlanganiswa okungenamthungo kungqalasizinda yenethiwekhi ekhona ngaphandle kokuklama kabusha okukhulu.

Ukunethezeka Okuphansi kanye Nomkhawulokudonsa Ophakeme
Ukulahlekelwa kwesignali ephansi kanye nomthamo womkhawulokudonsa ophezulu kusiza ukugcina ukudluliswa kwedatha okungaguquki, okubalulekile ezindaweni ezidinga idatha njengezikhungo zedatha nezinhlelo zokugcina.

I-DMD Eyehlisiwe Yokuqina Kwesiginali
Ukubambezeleka kwemodi ephansi (i-DMD) kusiza ukunciphisa ukuhlanekezela kwesignali, kuthuthukise ikhwalithi yokudlulisela iyonke ezinhlelweni zokusebenza ezinesivinini esikhulu.

Ukumelana Nokugoba Okuthuthukisiwe
Ukumelana okuthuthukisiwe kokugoba okuncane kunciphisa ubungozi bokufaka futhi kugcina ukusebenza ngisho nasezimweni eziyinkimbinkimbi zomzila.

Izimo Zokusebenza Ezijwayelekile

Ngokombono wobunjiniyela nowokuthenga, i-Multi-mode Optical Fiber OM2+/OM3 isetshenziswa kabanzi ku:

Izikhungo zedatha namakamelo amaseva
Amanethiwekhi okugcina idatha
Izikhungo ze-High-performance computing (HPC).
Amanethiwekhi wendawo (LAN)
I-Enterprise Ethernet systems

Kungani Khetha Orientalfiber

I-Orientalfiber isekelwa yi-Jiangsu Xuben Photoelectric Technology Co., Ltd, inkampani yeqembu enezindawo zokukhiqiza ezine ezikhethekile ezihlanganisa izintambo zasendlini, izintambo zangaphandle, izingxenye ze-ODN, kanye nemishini yenethiwekhi yokubona.

Njengoba ingqikithi yendawo yokukhiqiza engamamitha-skwele ayi-15,000 kanye nenani lokuphumayo lonyaka elifinyelela ku-20 million USD, inkampani isekela ukunikezwa kwenqwaba kanye nekhwalithi yomkhiqizo engaguquki. Imikhiqizo yayo isetshenziswa kabanzi kwezokuxhumana, ezokusakaza, nengqalasizinda kagesi, ezokuthutha ngololiwe kanye nezinhlelo zokuxhumana zezimboni.

Igunyazwe ngezinhlelo ze-ISO9001 ne-ISO45001, umenzi uqinisekisa ukukhiqizwa okuzinzile, ukuqinisekiswa kwekhwalithi, nokwethembeka kokubambisana kwesikhathi eside kubathengi bomhlaba.

Amaphuzu Avelele Evelu Lokuthenga

Isixazululo esingabizi kakhulu samanethiwekhi amabanga amafushane namaphakathi anesivinini esikhulu
Ukuhlanganiswa okulula nengqalasizinda yefayibha ye-multimode ekhona
Ukusebenza okuzinzile kwezindawo ezidinga idatha
Ifanele ukuthuthukiswa kwenethiwekhi okukalayo

FAQ

Q1: Uyini umehluko phakathi kwe-OM2+ ne-OM3 fiber?
I-OM3 inikeza umkhawulokudonsa ophezulu futhi yenzelwe ukudluliswa kwe-laser, kuyilapho i-OM2+ inikeza ukusebenza okuthuthukisiwe uma kuqhathaniswa ne-OM2 evamile. I-Multi-Mode Optical Fiber OM2+/OM3 ihlanganisa ukuhambisana nekhono lokudlulisa elithuthukisiwe.

Q2: Ingabe le fibre ifaneleka kumanethiwekhi we-10G?
Yebo, i-Multi-mode Optical Fiber OM2+/OM3 isetshenziswa kakhulu ku-10 Gigabit Ethernet futhi isekela isivinini esikhulu kuye ngebanga nokucushwa kwesistimu.

Q3: Ingabe ingasetshenziswa ezinhlelweni ezikhona zamakhebula?
Yebo, ibuyela emuva iyahambisana ne-OM2+/OM3/OM4 fibers, okuyenza ifaneleke ukuthuthukiswa noma izindawo ezixubile zenethiwekhi.

Q4: Uphi lo mkhiqizo osetshenziswa kakhulu?
Ivamise ukusetshenziswa ezikhungweni zedatha, ama-LAN webhizinisi, nasezindaweni zekhompuyutha ezisebenza kahle kakhulu lapho kudingeka khona ukudluliswa kwedatha okuthembekile ngesivinini esikhulu.

Amazinga

I-OM3 ye-multimode fiber egobile ihlangana noma yeqa ukucaciswa kwe-ISO/IEC 11801-1 OM3, ukucaciswa kwe-IEC 60793-2-10 A1-OM3, kanye nokucaciswa kwe-TIA-492AAAF A1-OM3.

Izinhlelo zokusebenza

Izikhungo zedatha

Amanethiwekhi okugcina idatha

Izikhungo zamakhompiyutha ezisebenza kahle kakhulu a

Amanethiwekhi wendawo (LAN)

I-Ethernet

Izici

1 Kwenzelwe ama-850nm VCSELs

2 Ihambisana ne-OM2+/OM3/OM4 imicu ye-multimode yamanje

3 Ukufana okuhle kwejometri

4 Ukuwohloka okuphansi

5 Umkhawulokudonsa ophezulu

6 Ukubambezeleka kwemodi yokuhlukanisa ephansi (i-DMD)

7 Ukumelana okuphezulu nokugoba okuncane

8 Ukusebenza okuzinzile phezu kwezinhlobonhlobo zezimo zemvelo

Imininingwane

Izici	Izimo	Kucacisiwe amanani	Amayunithi
Ijiyomethri Izici
Ingqikithi Ububanzi	--	50±2.5	[μm]
Ingqikithi Ukungasindisi	--	≤5.0	[%]
Ukugqoka Ububanzi	--	125.0±1.0	[μm]
Ukugqoka Ukungasindisi	--	≤0.6	[%]
Ukugqoka Ububanzi	--	245±7	[μm]
I-Coating/Cladding Iphutha Le-Concentricity	--	≤10.0	[μm]
Ukugqoka Ukungasindisi	--	≤6.0	[%]
I-Core/Cladding Iphutha Le-Concentricity	--	≤1.0	[μm]
Ukulethwa Ubude	--	phezulu ibe 8.8	[km/reel]
I-Optical Izici
Ukunciphisa	850nm	≤2.4	[dB/km]
Ukunciphisa	1300nm	≤0.6	[dB/km]
--	--	I-MaxBand® I-OM2+/OM3/OM4 Gobisa Akuzwakali
Kugcwaliswe ngokweqile I-Modal Bandwidth	850nm	≥700/≥1500/≥3500	[MHz·km]
Kugcwaliswe ngokweqile I-Modal Bandwidth	1300nm	≥500/≥500/≥500	[MHz·km]
Isebenza kahle I-Modal Bandwidth	850nm	≥950/≥2000/≥4700	[MHz·km]
Isicelo ibanga lokusekela livuliwe	--	--	--
40GBASE-SR4 / 100GBASE-SR101	850nm	-/140/170	[m]
I-10GBASE-SR	850nm	150/300/550	[m]
1000BASE-SR	850nm	750/1000/1100	[m]
I-DMD Ukucaciswa	Iyahambisana eqinile futhi eqinile kunezidingo ze-IEC60793-2-10		--
Okwezinombolo Imbobo	--	0.200±0.015	--
Iqembu I-Refractive Index	850nm	1.482	--
Iqembu I-Refractive Index	1300nm	1.477	--
I-Zero Dispersion Wavelength(λ0)	--	1295-1340	[nm]
I-Zero Dispersion Slope(S0)	1295nm≤λ0≤1310nm	≤0.105	[ps/(nm2·km)]
I-Zero Dispersion Slope(S0)	1310nm≤λ0≤1340nm	≤0.000375(1590-λ0)	[ps/(nm2·km)]
I-Macrobending Ukulahlekelwa2	--	--	--
2 Ijika @ 15 mm Irediyasi	850nm	≤0.1	[dB]
2 Ijika @ 15 mm Irediyasi	1300nm	≤0.3	[dB]
2 Ijika @ 7.5 mm Irediyasi	850nm	≤0.2	[dB]
2 Ijika @ 7.5 mm Irediyasi	1300nm	≤0.5	[dB]
I-Backscatter Izici	1300nm
Isinyathelo (Incazelo Yokulinganiswa Kwe-Bidirectional)	--	≤0.10	[dB]
Okungahambi kahle Ngaphezulu Kwe-Fiber Length kanye Nokungaqhubeki Kwephuzu	--	≤0.10	[dB]
Ukunciphisa Ukufana	--	≤0.08	[dB/km]
Ezemvelo Izici	850nm kanye ne-1300nm
Izinga lokushisa Ukuhamba ngebhayisikili	-60 ℃ kuya ku-85 ℃	≤0.10	[dB/km]
Izinga lokushisa-Ukuswakama Ukuhamba ngebhayisikili	-10℃ kuya ku-85℃,4% kuya ku-98% RH	≤0.10	[dB/km]
Amanzi Ukucwiliswa	23 ℃, izinsuku ezingu-30	≤0.10	[dB/km]
Yomile Ukushisa	85℃, izinsuku ezingu-30	≤0.10	[dB/km]
Umswakama Ukushisa	85 ℃, 85% RH, izinsuku ezingu-30	≤0.10	[dB/km]
Omakhenikha Ukucaciswa
Ubufakazi Hlola	--	≥9.0	[N]
	--	≥1.0	[%]
	--	≥100	[kpsi]
Ukugqoka Strip Force	ejwayelekile amandla isilinganiso	1.5	[N]
Ukugqoka Strip Force	isiqongo phoqa	≥1.3, ≤8.9	[N]
I-Dynamic Stress Corrosion Susceptibility Parameter (nd, ejwayelekile)	--	20	--
