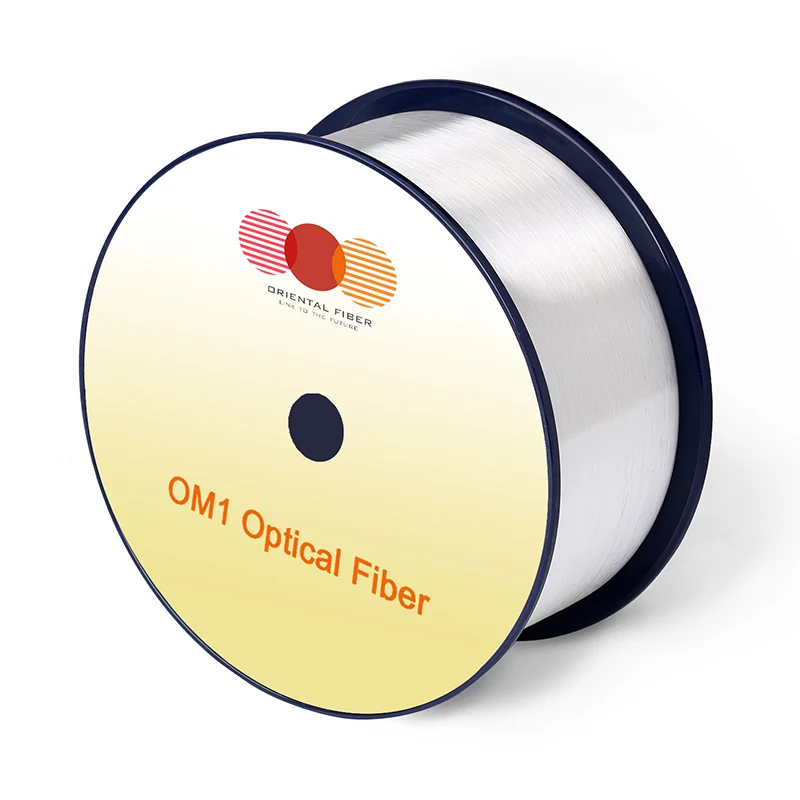

Multi-mode optical fiber om1

Izici

Izimo

Amanani acacisiwe

Amayunithi

Izici zejometri

Ububanzi obuyinhloko

-

62.5 ± 2,5

[μm]

I-Core non-isiyingi

-

≤5.0

[%]

UCladding Ububanzi

-

125.0 ± 1.0

[μm]

Cladding non-isikrini

-

≤1.0

[%]

I-Coaing Ububanzi

-

245 ± 7

[μm]

I-coating / cladding concental iphutha

-

≤10.0

[μm]

Ukuhlanganisa okungekhona

-

≤6.0

[%]

Iphutha le-Core / Cladring Clicricity

-

≤1.5

[μm]

Ubude bokulethwa

-

Kufika ku-17.6

[km / reel]

Izici zokubona

I-attenuation

I-850nm

≤2.7

[DB / KM]

1300nm

≤0.6

[DB / KM]

Ngaphezulu komkhawulokudonsa we-file

I-850nm

≥200

[UMHZ · kM]

1300nm

≥500

[UMHZ · kM]

Isithambisi sezinombolo

-

0.275 ± 0.015

-

Inkomba ye-Run Reap

I-850nm

1.496

-

1300nm

1.491

-

I-Zero Dispion Wavengeth, λ0

-

1320 ~ 1365

[NM]

I-Zero Displion Slope, S0

1320nm≤ λ0 ≤1348nm

≤0.11

[I-PS / (NM2 · KM)]

1348nm≤ λλ0 ≤135Nm

≤0.001 (1458-L0)

[I-PS / (NM2 · KM)]

Ukulahleka kwe-macrobending

-

-

-

I-100 Transs @ 37.5 mm radius

I-850nm

≤0.50

[db]

1300nm

≤0.50

[db]

Izici ze-BackScatter

1300nm

Isinyathelo (Kusho Ukulinganiswa Kwe-Bidirectional)

-

≤0.10

[db]

Ukungahambi kahle ngaphezulu kobude be-fiber kanye ne-point discontinuity

-

≤0.10

[db]

Ukufana kwe-attenuation

-

≤0.10

[DB / KM]

Izici zemvelo

I-850nm & 1300nm

Ukushisa ngokuhamba ngebhayisikile

-60 ℃ kuya ku-85 ℃

≤0.10

[DB / KM]

Ukushisa-umswakama-umswakama

-10 ℃ kuya ku-85 ℃, 4% kuya ku-98% RH

≤0.10

[DB / KM]

Ukucwiliswa emanzini

23 ℃, izinsuku ezingama-30

≤0.10

[DB / KM]

Ukushisa okulomile

85 ℃, izinsuku ezingama-30

≤0.10

[DB / KM]

Ukushisa okumanzi

85 ℃, 85% RH, izinsuku ezingama-30

≤0.10

[DB / KM]

Ukucaciswa Kwemishini

Ukuhlolwa kobufakazi

-

≥9.0

[N]

-

≥1.0

[%]

-

≥100

[KPSI]

I-coating strip Force

Amandla ajwayelekile aphakathi

1.5

[N]

I-Peak Force

≥1.3, ≤8.9

[N]

I-Dynamic Stress Colosion corrosion parameter (ND, ejwayelekile)

-

20

-
