Indoor Ribbon Fiber Optic Cable

I-Orientalfiber inikezela ngekhebula le-Indoor Ribbon Fiber Optic Cable yekhwalithi ephezulu njengesixazululo esiphelele senethiwekhi ye-fiber optic. Le ntambo yamukela iribhoni ye-fiber optic njengendawo yokudlulisa, ehlanganisa ukuhlanganiswa okuphezulu, ukudluliswa kwesignali okuzinzile, nokufaka kalula. Isetshenziswa kabanzi ekusabalaliseni kwangaphakathi, ekuxhumekeni kwemishini, nasezinhlelweni zokuxhumana.

Thumela Uphenyo

Incazelo Yomkhiqizo

Ikhebula le-Indoor Ribbon Fiber Optic lisebenzisa iribhoni ye-fiber optic njengendlela yokudlulisa amehlo. Iribhoni ye-fiber optic ifakwa eshubhuni elixegayo elenziwe ngezinto eziphezulu ze-modulus bese limbozwa ungqimba lwe-aramid yokuqiniswa. Isendlalelo esingaphandle sikhishwe nge-polyvinyl chloride (PVC) sheath. Lo mklamo wesakhiwo uqinisekisa ukusebenza okuthembekile nokusebenza okulula ezindaweni zasendlini.

Izici Eziyinhloko

Idizayini yeribhoni yefiber ephezulu edidiyelweIsakhiwo seribhoni yefayibha sinika amandla ukuminyana okuphezulu kwefayibha ngendlela ehlangene, ukwenza ukuphatha nokufaka kube lula. Isekela ukuxhumana okusebenzayo nezixhumi ze-MT/MTP, ezifanele izimo zezintambo ezixinene kakhulu.

Amandla amahle we-tensile Ifakwe i-aramid reinforcement, ikhebula linikeza ukumelana okuqinile kwe-tensile ukumelana namandla angaphandle ngesikhathi sokwakhiwa nokusetshenziswa, iqinisekisa ukuzinza kwesignali.
Izinto zangaphandle ezihlala isikhathi eside Igobolondo elingaphandle liyamelana nokugqwala, alikwazi ukumelana namanzi, alikwazi ukumelana ne-UV, alikwazi ukumelana nelangabi, futhi aliyingeni imvelo. Ihlangabezana nezidingo zokuphepha zasendlini futhi ivumelana nezimo ezihlukahlukene zokusebenza.
Ukufakwa kalula nokugcinwa Ikhebula liyavumelana nezimo ngokusebenza kahle kokugoba, kulula ukuyihambisa ezindaweni eziwumngcingo njengamathreyi ekhebula namapayipi. Akudingi amafutha okugcoba, ukusiza ukwakhiwa okusheshayo nokuxhuma.

Imininingwane Yezobuchwepheshe

Ipharamitha	Ukucaciswa
Uhlobo lweFiber	Imodi eyodwa (G.652D/G.657A1) / Imodi eminingi (50/125μm, 62.5/125μm)
Ukubala Okubalulekile	4, 6, 8, 12, 24 cores (kungenziwa ngokwezifiso)
Isakhiwo sekhebula	I-Ribbon fibre ku-loose tube + i-aramid reinforcement + i-PVC sheath
Ububanzi bangaphandle	Yenza ngokwezifiso (imvamisa 3.0–6.0mm)
Ukunciphisa	≤0.36 dB/km ku-1310nm; ≤0.22 dB/km ku-1550nm (imodi eyodwa)
Amandla Okuqina	Isikhathi esifushane: ≥1500N; Isikhathi eside: ≥600N
Ukugoba Irediyasi	I-Static: ≥10× ububanzi bekhebula; I-Dynamic: ≥20× ububanzi bekhebula
Izinga Lokushisa Lokusebenza	-20°C kuya +60°C
I-Sheath Material	I-PVC (i-halogen engenantuthu ephansi ngokuzithandela)
Ukuhambisana	ISO9001, IEC 60794-1-21, TIA/EIA-598-B

Izinhlelo zokusebenza

Ukusabalalisa ikhebula lasendlini Isetshenziswa ezikhungweni zedatha, ezakhiweni zamahhovisi, ezinxanxatheleni zezitolo, nemiphakathini yokuhlala ukuze kufakwe izintambo ezivundlile neziqondile, okuqinisekisa ukudluliswa kwesignali okusebenzayo ngaphakathi kwenethiwekhi.
Ukuxhumana phakathi kwezinsimbi nezinto zokuxhumana Isebenza njengezintambo zokuchibiyela noma izintambo ezigxumayo zokuxhuma amaseva, amaswishi, amarutha, namanye amathuluzi okuxhumana, ihlinzeka ngokudluliswa kwedatha okuzinzile nokunesivinini esikhulu.
Izimo zezimboni nezikhethekile Kusetshenziswa kumasistimu kagesi, ezokuthutha ngololiwe, nobunjiniyela bomgwaqo omkhulu ngezidingo zokuxhuma ekupheleni, ukuzivumelanisa nezimo zezimboni ezinokhahlo nokusebenza okuthembekile.

Izinzuzo

Ukuthembeka okuphezulu Isakhiwo esilungiselelwe kanye nezinto ezisezingeni eliphezulu ziqinisekisa ukudluliswa kwesignali ezinzile nempilo ende yesevisi, ehlangabezana nezidingo eziqinile zamaphrojekthi ahlukahlukene.
Kuqiza kahle Ukuhlanganiswa okuphezulu kunciphisa inani lezintambo nesikhathi sokufakwa, kwehlisa izindleko zephrojekthi jikelele. Ukucaciswa okwenziwa ngendlela oyifisayo kuvumela izixazululo ezihambisanayo zezinhlelo zokusebenza ezahlukene.
Ukulawulwa kwekhwalithi okuphelele I-Jiangsu Xuben Photoelectric Technology Co., Ltd. ilandela ngokuqinile izindinganiso zokuphatha ikhwalithi ye-ISO9001. Ikhebula ngalinye le-Indoor Ribbon Fiber Optic lihlolwa kanzima ukuze kuqinisekiswe ukusebenza okungaguquki nokwethembeka.

Izici

Idizayini yeribhoni yefiber ephezulu edidiyelwe

I-Aramid reinforcement element inika ikhebuli amandla aqine kakhulu wokunyakazisa

Izinto ezingaphandle azikwazi ukugqwala, azikwazi ukumelana namanzi, azikwazi ukumelana ne-UV, azikwazi ukumelana namalangabi futhi azihambisani nemvelo.

Izinhlelo zokusebenza

Ukusabalalisa ikhebula lasendlini

Ukuxhumana phakathi kwezinsimbi, izinto zokuxhumana

Amazinga

Ukuthobelana ne-Standard YD/T 1258.5, ICEA-596, GR-409, IEC 60794-2-30, njll.

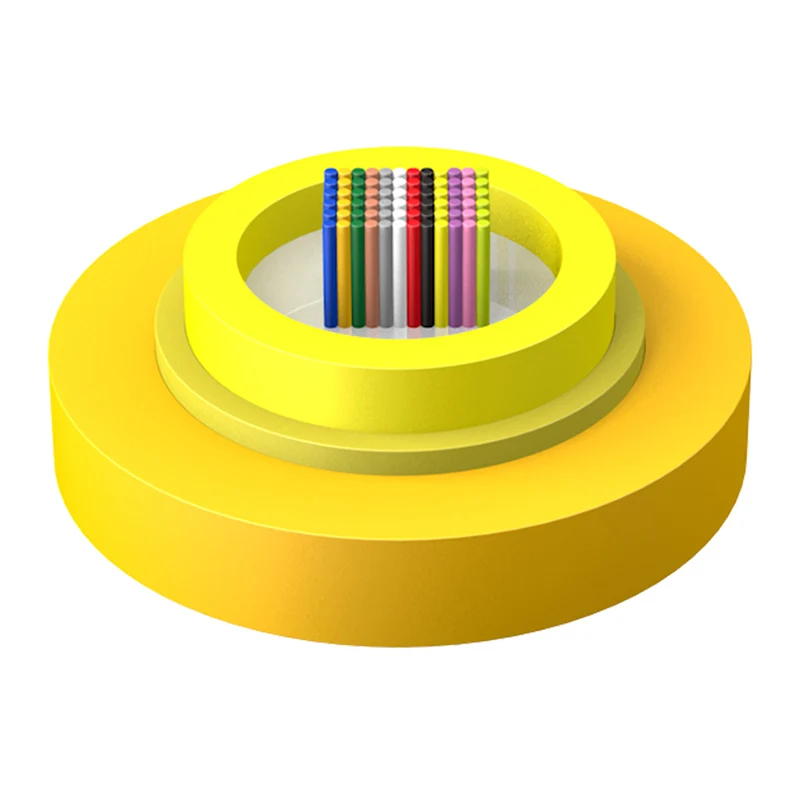

Umdwebo Wesakhiwo

1. I-Fiber Ribbon

2. Ishubhu elixegayo

3. Intambo ye-Aramid

4. Ijakhethi yokuphuma

Indoor Ribbon Fiber Optic Cable

Imingcele Yezobuchwepheshe

Imodeli Yekhebula	I-Fiber Count	Isisindo sekhebula (Ref) (kg/km)	Amandla Okuqina Isikhathi Eside/Esifushane	I-Crush Resistance Isikhathi Eside/Esifushane (N/100mm)	Ukugoba Irediyasi I-Dynamic/Static (mm)
I-GJFDV-48	12F×4	84	200/660	300/1000	25D/12.5D
I-GJFDV-72	12F×6	90	200/660	300/1000	25D/12.5D
I-GJFDV-96	12F×8	100	200/660	300/1000	25D/12.5D
I-GJFDV-144	12F×12	125	200/660	300/1000	25D/12.5D

Izimpawu ze-Optical

Uhlobo lweFiber	Ukunciphisa				OFL	Umkhawulokudonsa wemodi esebenzayo	10 Gbit/s Ubude besixhumanisi se-Ethernet	Ubuncane be-Bend Radius
Isimo	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
Isimo	Inani Elijwayelekile	Inani eliphezulu	Inani Elijwayelekile	Inani eliphezulu	850/1300nm	850nm	850nm	/
Iyunithi	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
I-G657A1	0.36/0.22	0.5/0.4	---	---	---	---	---	10
I-G657A2	0.36/0.22	0.5/0.4	---	---	---	---	---	7.5
50/125	---	---	3.0/1.0	3.5/1.5	≥500/500	---	---	30
62.5/125	---	---	3.0/1.0	3.5/1.5	≥200/500	---	---	30
OM3	---	---	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4	---	---	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30
