I-Flat Fiber Ribbon Fiber Optic Cable

Esimeni esiguqukayo esishintshayo sokudluliswa kwedatha okuminyene kakhulu, iFlat Fiber Ribbon Fiber Optic Cable yomhlinzeki we-Orientalfiber ime njengesixazululo esibalulekile sokwakhiwa kwenethiwekhi yesimanje. Ikhiqizwe i-Jiangsu Xuben Photoelectric Technology Co., Ltd, le khebula iklanyelwe ukuthuthukisa ukusebenza kahle kwesikhala emiseleni eminyene nasezikhungweni zedatha. Ngokusebenzisa isakhiwo seribhoni esiqondaniswe ngokunemba, sivumela ukubalwa kwefayibha ephezulu ngaphakathi kwephrofayili ehlangene, iqinisekisa ukuthi opharetha bezokuxhumana kanye namabhizinisi ezimboni bangakwazi ukukala umkhawulokudonsa wabo ngaphandle kokwandisa ingqalasizinda ebonakalayo.

Thumela Uphenyo

Incazelo Yomkhiqizo

Ukuchazwa Komkhiqizo kanye Nokubuka Konke Kwezobuchwepheshe

I-Flat Fiber Ribbon Fiber Optic Cable iyisikhungo sokudlulisa amehlo esiminyana kakhulu lapho amafayibha amaningi angawodwana ehlanganiswa ndawonye kumugqa oyisicaba, ohlelekile. Lo mungo weribhoni uvikelwe ungqimba lwentambo ye-premium aramid, esebenza njengeyunithi eqiniswe ngamandla ukuze inikeze amandla adingekayo okuqina okufakwa nokusebenza kwesikhathi eside. Ukuze kuhlangatshezwane nezidingo ezihlukahlukene zokuphepha nezemvelo, ikhebuli iqedwa ngomgodla wangaphandle oqinile owenziwe nge-Polyvinyl Chloride (PVC) noma impahla ye-Low-Smoke Zero-Halogen (LSZH).

Izici Eziyinhloko Nezinzuzo Eziyinhloko

Idizayini Yeribhoni Edidiyelwe Kakhulu: Ijiyomethri eyisicaba ihlela imicu ibe ngamaqembu, ivumela ububanzi bekhebula elincane kakhulu uma kuqhathaniswa nokulungiselelwa kweshubhu okuxekethile okuvamile.

I-Aramid Reinforcement: Ukufakwa kwentambo ye-aramid ephezulu ye-modulus kunikeza i-Flat Fiber Ribbon Fiber Optic Cable enamandla adingekayo ekudonseni okuqondile nokuvundlile ngaphandle kokufaka ingozi kuma-cores engilazi.

Ukuqiniswa Kwemvelo: Ijakhethi yangaphandle yakhelwe ukuthi imelane nokugqwala, ingangeni emanzini, futhi imelane ne-UV, iqinisekisa ukusebenza okuzinzile ezindaweni ezihlukahlukene zasendlini nezivikelekile zangaphandle.

Ukuthobela Ukuphepha: Ngezinketho zejakhethi ye-LSZH, ikhebuli ihlangabezana nezindinganiso zamazwe ngamazwe zokunqanda amalangabi (IEC 60332-1 noma IEC 60332-3C), okuyenza ifanele izakhiwo ezihlala abantu abaningi kanye nezinhlelo zokuhamba.

Imininingwane Yezobuchwepheshe

Uhlobo Lwefiber: Ihambisana ne-Single-mode (G.652D, G.657A) kanye ne-Multimode (OM1 kuya ku-OM4) imicu.

Iyunithi Yokuqinisa: I-Multi-strand Aramid Yarn.

Izinto Zomgodla Wangaphandle: I-PVC (ihlangabezana nezimfuneko ze-UL OFNR/OFNP) noma i-LSZH (Intuthu Ephansi, AyinaHalogen).

Amazinga Emishini: Ihambisana ngokugcwele ne-YD/T 1258.5, ICEA-596, GR-409, kanye ne-IEC 60794-2-30.

Ibanga Lezinga lokushisa: Idizayinelwe ukusebenza okuthembekile kumazinga okushisa emvelo yokuxhumana ngocingo.

Izinkambu Zokusebenza Ezihlukahlukene

Ukuguquguquka kwe-Flat Fiber Ribbon Fiber Optic Cable kuyenza ibe yinketho ekhethwayo ezimbonini eziningi:

Izikhungo Zedatha: Ilungele ukuxhuma ama-racks eseva asondelene kakhulu kusetshenziswa ubuchwepheshe bokunqanyulwa kwe-MPO/MTP.

Ukusabalalisa Kwangaphakathi: Kusetshenziselwa ukufakwa kwamakhebula omgogodla ezakhiweni zamahhovisi ezentengiselwano namahhovisi okushintshana amaphakathi.

Izisetshenziswa Zokuxhumana: Kusebenza njengokuxhumana okuyinhloko phakathi kwezisetshenziswa ezinembayo nehadiwe yenethiwekhi.

I-Industrial Systems: Ihlinzeka ngezixhumanisi zedatha ezithembekile zamagridi kagesi, ukugadwa kwezinto zokuhamba zikaloliwe, nezinhlelo zokuxhumana zemigwaqo emikhulu.

Amandla Okukhiqiza: I-Jiangsu Xuben Photoelectric Technology Co., Ltd

Izinga le-Flat Fiber Ribbon Fiber Optic Cable lisekelwa isikali sezimboni nobungcweti bobuchwepheshe be-Jiangsu Xuben Photoelectric Technology Co., Ltd.

Ingqalasizinda: Iqembu lisebenza izimboni ezine ezikhethekile endaweni yonke engamamitha-skwele ayi-15,000.

Inani Lokukhiqiza: Ngenani eliphumayo lonyaka lama-dollar ayizigidi ezingama-20, inkampani igcina amandla okuhlinzeka ngamaphrojekthi amakhulu wobunjiniyela bomhlaba.

Ukuphathwa Kwekhwalithi: Isikhungo sizuze izitifiketi ze-ISO9001 ne-ISO45001, siqinisekisa ukuthi imitha ngayinye yekhebula inamathela kumoya wobuciko ophakeme kakhulu.

Isithunzi Somhlaba Wonke: Imikhiqizo ye-Orientalfiber isetshenziswa opharetha bezokuxhumana kanye nabaholi bezimboni emhlabeni wonke, baqashelwa ngokukhiqiza kwabo okucolisisiwe kanye nokungaguquguquki kochwepheshe.

Izinzuzo Ngaphezu Kwezinye Ezivamile

Uma kuqhathaniswa nemiklamo yefayibha yendabuko, isisombululo seribhoni ye-Orientalfiber sinikeza:

Ukusebenza Kwe-Mass Splicing: Ochwepheshe bangakwazi ukuhlanganisa imicu engu-12 ngesikhathi esisodwa, behlise kakhulu izindleko zokufakwa.

Ukugeleza Komoya Okungcono: Iphrofayili ehlangene, eyisicaba ye-Flat Fiber Ribbon Fiber Optic Cable ivumela umoya ongcono kumathreyi ekhebula namakhabethe esiva.

Ukuvikela Okunokwethenjelwa: Ngokungafani nezinye izindlela zebhajethi, ukusebenzisa kwethu i-aramid yezinga eliphezulu kuqinisekisa ukuthi ikhebuli ayicwizi noma ayinwebeki ngokuhamba kwesikhathi ezinhlelweni zokukhuphukela phezulu eziqondile.

Izici

Idizayini yeribhoni yefiber ephezulu edidiyelwe

I-Aramid reinforcement element inika ikhebuli amandla aqine kakhulu wokunyakazisa

Izinto ezingaphandle azikwazi ukugqwala, azikwazi ukumelana namanzi, azikwazi ukumelana ne-UV, azikwazi ukumelana namalangabi futhi azihambisani nemvelo.

Izinhlelo zokusebenza

Ukusabalalisa ikhebula lasendlini

Ukuxhumana phakathi kwezinsimbi, izinto zokuxhumana

I-Patchcord ne-pigtail

Amazinga

Ukuthobelana ne-Standard YD/T 1258.5, ICEA-596, GR-409, IEC 60794-2-30, njll., futhi ikhebula le-PVC lihlangabezana nezimfuneko zokugunyazwa kwe-UL i-OFNR kanye ne-OFNP: Ijakhethi ye-LSZH ehlukile ihlangabezana ne-IEC 60332-1 noma i-IEC 60332-cerification.

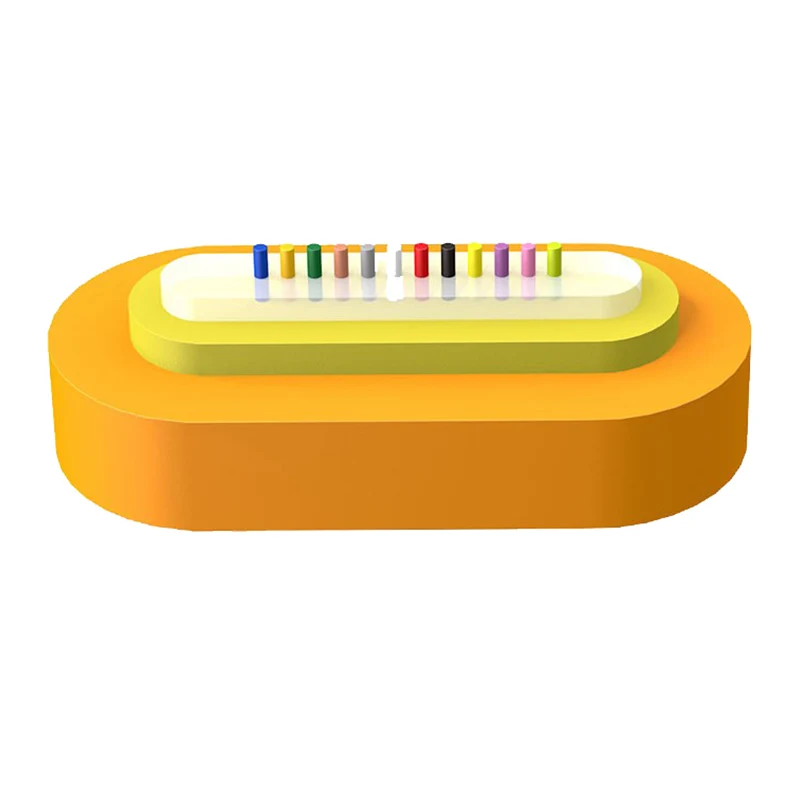

Umdwebo Wesakhiwo

1. Ifayibha

2. I-Fiber Ribbon

3. Intambo ye-Aramid

4. Ibhantshi

Flat Fiber Ribbon Fiber Optic Cable

Imingcele Yezobuchwepheshe

Imodeli Yekhebula	I-Fiber Count	Isisindo sekhebula (Ref) (kg/km)	Amandla Okuqina Isikhathi Eside/Esifushane	I-Crush Resistance Isikhathi Eside/Esifushane (N/100mm)	Ukugoba Irediyasi I-Dynamic/Static (mm)
4	(3.7±0.3)*(2.3±0.3)	4 I-Fiber Ribbon	4.7	6.6	80/150	300/1000	25D/12.5D
6	(4.2±0.4)*(2.5±0.2)	6 I-Fiber Ribbon	5.1	7.3
12	(4.8±034)*(2.3±0.3)	I-12 Fiber Ribbon	5.9	8.0

Izimpawu ze-Optical

Uhlobo lweFiber	Ukunciphisa				OFL	Umkhawulokudonsa wemodi esebenzayo	10 Gbit/s Ubude besixhumanisi se-Ethernet	Ubuncane be-Bend Radius
Isimo	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
Isimo	Inani Elijwayelekile	Inani eliphezulu	Inani Elijwayelekile	Inani eliphezulu	850/1300nm	850nm	850nm	/
Iyunithi	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
I-G652D	0.36/0.22	0.5/0.4	---	---	---	---	---	16
I-G657A1	0.36/0.22	0.5/0.4	---	---	---	---	---	10
I-G657A2	0.36/0.22	0.5/0.4	---	---	---	---	---	7.5
50/125	---	---	3.0/1.0	3.5/1.5	≥500/500	---	---	30
62.5/125	---	---	3.0/1.0	3.5/1.5	≥200/500	---	---	30
OM3	---	---	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4	---	---	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30
