I-Hybrid Optical kanye ne-Electric Stranded Loose Tube Cable GDTS

I-Hybrid Optical and Electrical Stranded Loose Tube Cable GDTS yakhelwe amandla ahlanganisiwe kanye nokudluliswa kwesignali, okuhlanganisa imicu yokubona nezikhondatha zethusi kukhebula eyodwa. Ikhiqizwe i-Orientalfiber, umphakeli nomkhiqizi ozinze e-China, le ntambo ye-GDTS inelungu lamandla ensimbi elimaphakathi, amashubhu axegayo agcwele izinto ezivikelayo, kanye nezivikelo zetheyiphu yensimbi enothayela, konke okuvikelwe ngegobolondo langaphandle le-PE eliqinile. Iklanyelwe ukusebenza okuthembekile ezindaweni ezinokhahlo futhi isekela kokubili ukufakwa kwamapayipi kanye nokufakwa phezulu, okwenza kube lula ukuthunyelwa kwezinhlelo zeziteshi eziyisisekelo ezisabalalisiwe namanethiwekhi ezimboni kuyilapho kunciphisa izindleko zokuthenga nezokwakha.

Thumela Uphenyo

Incazelo Yomkhiqizo

I-Orientalfiber inikezaI-Hybrid Optical kanye ne-Electric Stranded Loose Tube Cable GDTS, isixazululo esikhethekile esiklanyelwe ukuhlanganisa ukudluliswa kwedatha ngesivinini esiphezulu kanye nokulethwa kwamandla okuthembekile kuyunithi eyodwa yesakhiwo. Le ntambo eyinhlanganisela yenzelwe ukuhlangabezana nezidingo eziguqukayo zengqalasizinda yesimanje yezokuxhumana, ikakhulukazi lapho ukusebenza kahle kwendawo nokufakwa ngendlela efanele kubaluleke kakhulu.

Uhlolojikelele Lomkhiqizo Nokubunjwa Kwezinto

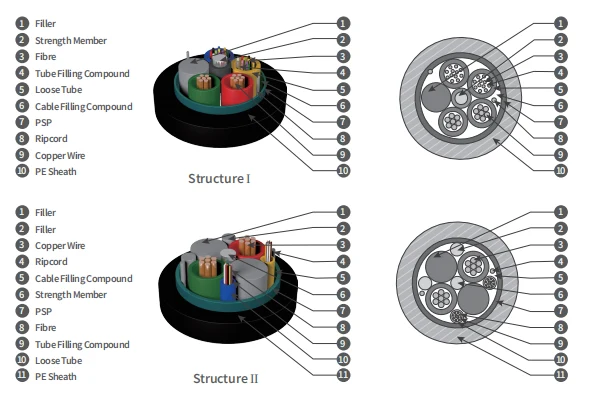

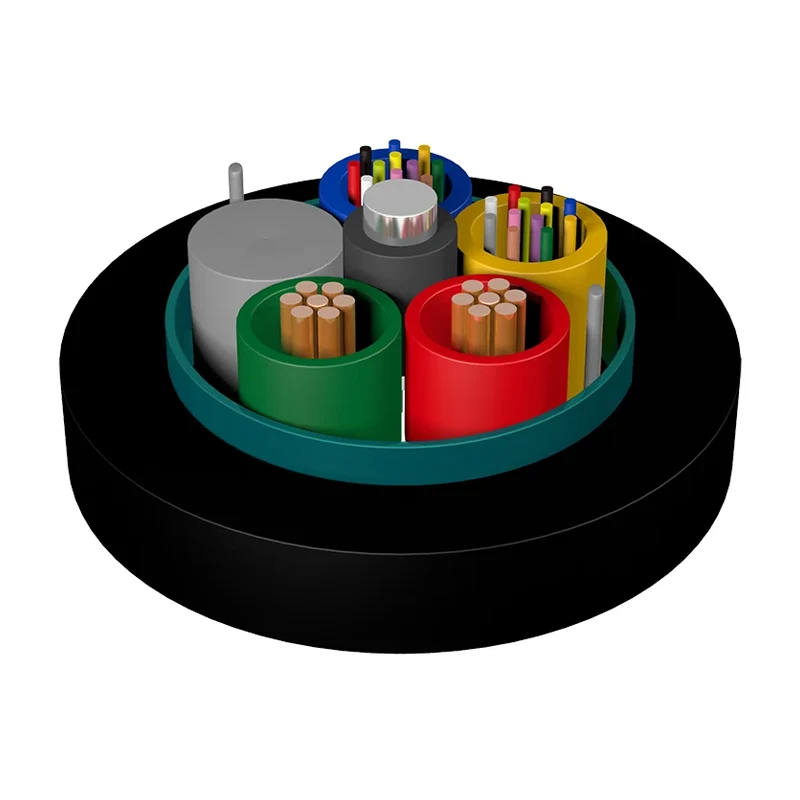

II-Hybrid Optical kanye ne-Electric Stranded Loose Tube Cable GDTSisebenzisa i-architecture enezingqimba eziningi eyinkimbinkimbi. Emgogodleni wayo, ilungu lokuqinisa insimbi linikeza amandla adingekayo okuqina. Ezungeze lesi sikhungo kukhona amashubhu avulekile enziwe nge-high-modulus plastic, izindlu zemicu ye-optical kanye nezinhlanganisela zokugcwalisa ezivikelayo.

Okuhlanganiswe eceleni kwala mashubhu kunezintambo zethusi eziboshiwe, ezilungiselelwe izidingo ezithile zikagesi. Le nhlangano ewumgogodla ivikelwe isivikelo sethaphu yensimbi kathayela, esinikeza isivikelo esiqinile ngokumelene nomthelela wemishini kanye nokulimala kwamagundane. Isakhiwo sonke siqedwa nge-polyethylene eqinile (PE) yangaphandle, eqinisekisa ukuzinza kwesikhathi eside ezimweni ezinzima zemvelo.

Izinzuzo Eziyinhloko Zezobuchwepheshe

Amandla Ahlanganisiwe Nesiginali:Ngokuhlanganisa ama-conductor ethusi nama-optical fibers, i-I-Hybrid Optical kanye ne-Electric Stranded Loose Tube Cable GDTSkuqeda isidingo sezintambo zikagesi ezihlukene, kube lula ukwakheka kwekhebula.
Ukuqina Komshini:I-armoring yensimbi yensimbi ehlanganisiwe kanye nelungu lamandla ensimbi livumela ukusebenza okuthembekile ezindaweni ezine-high-tension, okuhlanganisa ukufakwa kwepayipi kanye nokufakwa phezulu.
Ukuzinza Kwemvelo:Ukwakheka kweshubhu okuxekethile kanye nezinhlanganisela zokugcwalisa ezimelana nomswakama zivikela imicu ekuguquguqukeni kwezinga lokushisa nokungena kwamanzi.
Ukusebenza Ngempumelelo:Ukufaka ugesi endaweni eyodwa kunciphisa isidingo sokuxhumanisa indawo yamandla kagesi futhi kwenza amashejuli okulungisa ajwayelekile abe lula.

Izimo Zokusebenza Eziyinhloko

Amasistimu Esiteshi Sesisekelo Esisabalalisiwe (i-BBU ukuya ku-RRU)

Icala eliyinhloko lokusetshenziswa kweI-I-I-OrientalfiberIkhebuli ye-GDTS iwukuxhumana phakathi kwe-Building Baseband Unit (BBU) ne-Remote Radio Unit (RRU) kumasistimu okunikezwa kwamandla okukude kwe-DC. Ivumela ukudluliswa ngesikhathi esisodwa kwezimpawu zomkhawulokudonsa ophezulu kanye nokulethwa kwamandla kagesi adingekayo kumayunithi we-antenna akude.

Ingqalasizinda Yasemadolobheni kanye Nenethiwekhi Yezimboni

Ngaphandle kwezokuxhumana, lokhuI-Hybrid Optical kanye ne-Electric Stranded Loose Tube Cable GDTSisetshenziswa kwezokuthutha zikaloliwe, izinhlelo zokuqapha umgwaqo onguthelawayeka, kanye nokusatshalaliswa kwamandla egridi ehlakaniphile lapho imithombo yamandla yasendaweni ingatholakali noma okunzima ukuyifaka.

Ukuqaliswa Kwephrojekthi Nokuphathwa Kwezindleko

Ukusebenzisa i-I-Hybrid Optical kanye ne-Electric Stranded Loose Tube Cable GDTSinomthelela ekwehliseni okukhulu kwezindleko zephrojekthi iyonke. Ngokunciphisa umthamo wezinto ezidingekayo kanye nokunciphisa umugqa wesikhathi wokufaka, opharetha bangafinyelela izindleko eziphansi zokuthenga nezokwakha. Le ndlela yokwenza lula iphinde inciphise ukunyathela okungokomzimba kumapayipi aminyene namathreyi ekhebula.

Mayelana ne-Orientalfiber (Jiangsu Xuben Photoelectric Technology)

Njengengxenye yeqembu le-Jiangsu Xuben Photoelectric Technology Co., Ltd,I-I-I-Orientalfiberisebenza ngaphakathi kwengqalasizinda engamamitha-skwele ayi-15,000 enikezelwe ekukhiqizeni amakhebuli angaphakathi/angaphandle kanye nezingxenye ze-ODN. Ngenani lokukhiphayo lonyaka lezigidi ezingu-20 zama-USD, inkampani inamathela ezindinganisweni zamazwe ngamazwe eziqinile, okuhlanganisa i-ISO9001 ne-ISO45001. Izinqubo zethu zokukhiqiza zigxile ekunembeni nasekuqineni kwebanga lochwepheshe, okusekela amaphrojekthi amakhulu wobunjiniyela emhlabeni jikelele.

imibuzo ejwayelekile ukubuzwa

1. Ingabe imininingwane yocingo lwethusi ingenziwa ngezifiso?

Yebo, inombolo negeji yamakhondaktha ethusi ngaphakathi kweI-Hybrid Optical kanye ne-Electric Stranded Loose Tube Cable GDTSingalungiswa ngokusekelwe ku-voltage ethize kanye nezidingo zamanje zemishini ekude.

2. Iyini imikhawulo yokufaka yale khebula?

Ikhebula elixubile le-GDTS lishintshashintshashintshashintshashintshashintsha, lidizayinelwe kokubili ukuthunyelwa kwepayipi (umbhobho) kanye nokufakwa phezulu (emoyeni), inqobo nje uma kusetshenziswa izingxenyekazi zekhompyutha ezicindezelayo ezifanele.

3. Isivikelo se-steel tape sikuthinta kanjani ukuguquguquka?

Nakuba itheyiphu yensimbi ewuthayela inikeza ukuvikeleka okubalulekile ekuchosheni, ikhebuli igcina indawo egobile ebaliwe evumela izinqubo zokufaka ezijwayelekile emathanjeni ezokuxhumana ngocingo asemadolobheni.

Izici

● Ukusebenza okuhle komshini kanye nezinga lokushisa;

● Idizayini exubile ye-Optical-electric hybrid ixazulula izinkinga zokuphakelwa kwamandla kanye nezinkinga zokudlulisela isignali, futhi ihlinzeka ngokuqapha okumaphakathi nokugcinwa kokugcinwa kwamandla kagesi;

● Ukwenza ngcono ukulawuleka kokuphakelwa kukagesi, kunciphisa ukudidiyela kanye nokugcinwa kahle kokuphakelwa kukagesi;

● Yehlisa izindleko zokuthenga futhi yonga izindleko zokwakha;

● Isetshenziselwa kakhulu ukuxhumana phakathi kwe-BBU ne-RRU esiteshini esisabalalisiwe se-DC amasistimu okunikezwa kwamandla okukude;

● Ifanele ukufakwa kwamapayipi nokufakwa phezulu

Hybrid Optical and Electrical Stranded Loose Tube Cable GDTS

Isici sobuchwepheshe

Uhlobo	O.D. (mm)	Isisindo (Kg/km)	Amandla aqinile Isikhathi eside/esifushane (N)	Gcoba Isikhathi eside/esifushane (N/100mm)	Isakhiwo
GDTS-02-24Xn+2×1.5	11.6	157	600/1500	300/1000	Isakhiwo I
GDTS-02-24Xn+2×2.5	12.5	190	600/1500	300/1000	Isakhiwo I
GDTS-02-24Xn+2×4.0	14.6	241	600/1500	300/1000	Isakhiwo II
GDTS-02-24Xn+2×5.0	15.0	282	600/1500	300/1000	Isakhiwo II
GDTS-02-24Xn+2×6.0	15.7	300	600/1500	300/1000	Isakhiwo II
GDTS-02-24Xn+2×8.0	16.9	383	600/1500	300/1000	IsakhiwoII

Qaphela:

1. I-Xn ibhekisela ohlotsheni lwefiber.

2. 2*1.5/2*2.5/2*4.0/2*6.0/2*8.0 ikhombisa inombolo nobukhulu bezintambo zethusi.

3. Izintambo ezihlanganisiwe ezinezinombolo nobukhulu obuhlukene bezintambo zethusi zingahlinzekwa uma zicelwa.

4. Izintambo zeHybrid ezinezibalo zefayibha ezihlukene zingahlinzekwa ngesicelo.

Ukusebenza Kagesi Komqhubi

Isigaba esiphambanayo (mm2)	Ubukhulu. Ukuphikiswa kwe-DC komqhubi oyedwa (20 ℃)(Ω/km)	Ukumelana ne-insulation (20℃)(MΩ.km)	Amandla e-Dielectric KV, DC 1min Amandla e-Dielectric KV, DC 1min
Isigaba esiphambanayo (mm2)	Ubukhulu. Ukuphikiswa kwe-DC komqhubi oyedwa (20 ℃)(Ω/km)	Phakathi komqhubi ngamunye nomunye amalungu ensimbi axhunywe kukhebula	Phakathi abaqhubi	Phakathi komqhubi kanye nezikhali zensimbi	Phakathi komqhubi kanye nocingo lwensimbi
1.5	13.3	Angabi ngaphansi kuka-5,000	5	5	3
2.5	7.98
4.0	4.95
5.0	3.88
6.0	3.30
8.0	2.47
