I-Hybrid Optical and Electrical Stranded Counse Cable GDTA

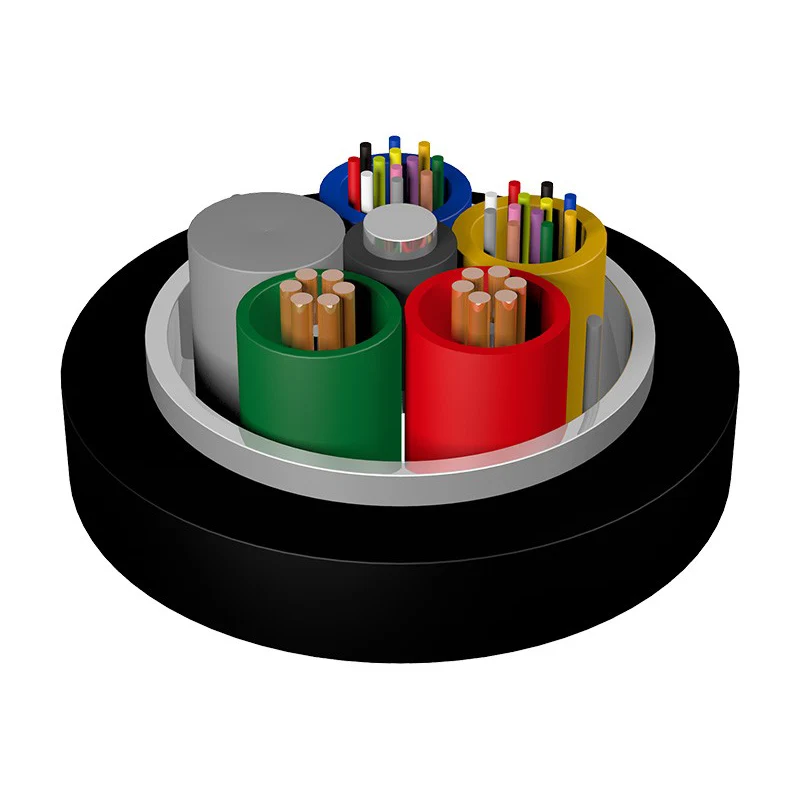

I-Hybrid Optical and Electrical Stranded Cube Counse GDTA efakwe kumashubhu athile enziwe ngeplastiki ephezulu ye-modulus futhi agcwaliswe nge-tube yokugcwalisa ishubhu. Maphakathi nentambo yilungu lensimbi. I-Tube ne-Wire yethusi (Ukucaciswa okudingekayo) kugoqwe yilungu lamandla esikhungo ukuze kwakhiwe umnyombo wekhebula. I-Cable Core igcwele i-Cable Filling Compound futhi inezihlokwana nge-aluminium tepi. Ijekethi ye-PE iyenziwa ikhishwe ekwakheni ijekethi yangaphandle.

Thumela Uphenyo

Incazelo Yomkhiqizo

Izici

● ukusebenza okuhle kwemishini nokushisa;

● Idizayini ye-hybrid-kagesi ye-hybrid-kagesi ixazulula ukuhlinzekwa kwamandla nezinkinga zokuhambisa iziginali, futhi inikezela ukuqapha kwamandla okuphakathi nokulungiswa kwemishini;

● Thuthukisa amandla okulawulwa kwamandla, ukunciphisa ukuxhumanisa kwamandla nokulungiswa;

● Yehlisa izindleko zokuthengwa kwempahla futhi usindise izindleko zokwakha;

● Isetshenziselwa ikakhulukazi ukuxhumana phakathi kwe-BBU ne-RRU esiteshini esisatshalalisiwe esiteshini sokuhlinzekwa kwamandla e-DC;

● Ilungele ipayipi nokufakwa ngaphezulu

Izici Zobuchwepheshe

Ukuthayipha	O.D. (mm)	Isisindo (kg / km)	Amandla asheshayo Isikhathi eside / esifushane (n)	Hlikihla Isikhathi eside / esifushane (N / 100mm)	Ukwakheka

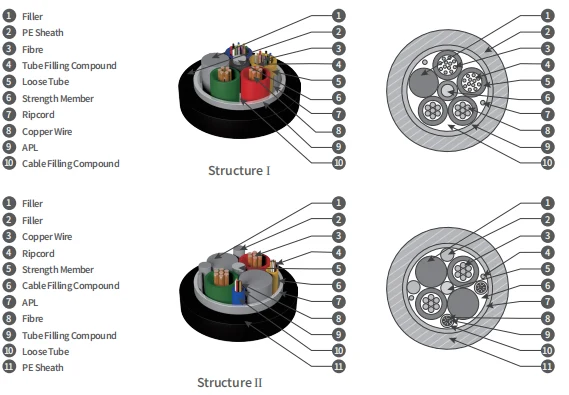

GDTA-02-24XN + 2 × 1.5 1.5	11.2	132	600/1500	300/1000	Isakhiwo Mina
I-GDTA-02-24XN + 2 × 2,5	12.3	164	600/1500	300/1000	Isakhiwo Mina
I-GDTA-02-24XN + 2 × 4.0	14.4	212	600/1500	300/1000	Hlela II
GDTA-02-24XN + 2 × 5.0	14.6	258	600/1500	300/1000	Hlela II
GDTA-02-24XN + 2 × 6.0	15.4	287	600/1500	300/1000	Hlela II
GDTA-02-24XN + 2 × 8.0	16.5	350	600/1500	300/1000	Hlela II

Qaphela:

1. I-XN ibhekisa ngohlobo lwe-FI BRE.

2. 2 * 1.5 / 2 * 2.5 / 2 * 4.0 / 2 * 4.0 * 6.0 * 6.0 / 2 * 6.0 / 2

4. I-hybrid optical and kagesi elahlekile ye-tube cable gdta enamabala e-di ff erent fi bre anganikeza ngesicelo.

Ukusebenza kukagesi komqhubi

Isigaba sesiphambano (mm²)	UMax. Ukumelana kwe-DC yomqhubi oyedwa (20 ℃) (ω / km)	Ukumelana nokufakelwa (20 ℃) (mω.km)	I-Dielectric Amandla KV, DC 1min Amandla KV, DC 1min
Isigaba sesiphambano (mm²)	UMax. Ukumelana kwe-DC yomqhubi oyedwa (20 ℃) (ω / km)	Phakathi komqhubi ngamunye nomunye amalungu ensimbi axhunywe ngentambo	Ngaphakathi abaqhubiyo	Phakathi komqhubi kanye ne-metallic Armor	Phakathi komqhubi nocingo lwensimbi
1.5	13.3	Abekho ngaphansi kuka-5,000	5	5	3
2.5	7.98
4.0	4.95
5.0	3.88
6.0	3.30
8.0	2.47
