I-Glass Yarn Finyelela Ukwakha I-Fib Fiber Optic Cable

Ukwakheka kwengilazi ye-Yarn Finyelela Intambo ye-Fiber Optic ukubeka i-φ230μm fiber toube efakwe kushubhu elivulekile elenziwe ngezinto eziphakeme ze-modulus, bese ugcwalisa ishubhu elixegayo ngezinto ezingavunyelwe. Ishubhu evulekile imbozwe ngengqimba yezakhi zokuqinisa ingilazi ze-fiber fiber, kanye nesendlalelo esingaphandle senziwe ngentuthu ephansi ye-zero halogen (LSzH, intuthu ephansi, i-halogen mahhala, ilangabi le-retardant) Sheath.

Thumela Uphenyo

Incazelo Yomkhiqizo

Izici

Ukusebenza okuhle kwemishini nokushisa

Izinto ze-tube ezivulekile ngokwayo zinokuqina okuhle kwe-hydrolysis namandla aphezulu

Ukumelana nokucindezela okuhle nokuthamba

Ilungu le-Yarn Wort liqinisekisa amandla ashubile

Ububanzi obuncane, isisindo esikhanyayo nokufakwa okunobungane

Amazinga

Ukuhambisana ne-yd / t 1770 evamile, i-ICA-596, GR.409, IEC 60794, IEC 332-1OR IEC 332-3C.

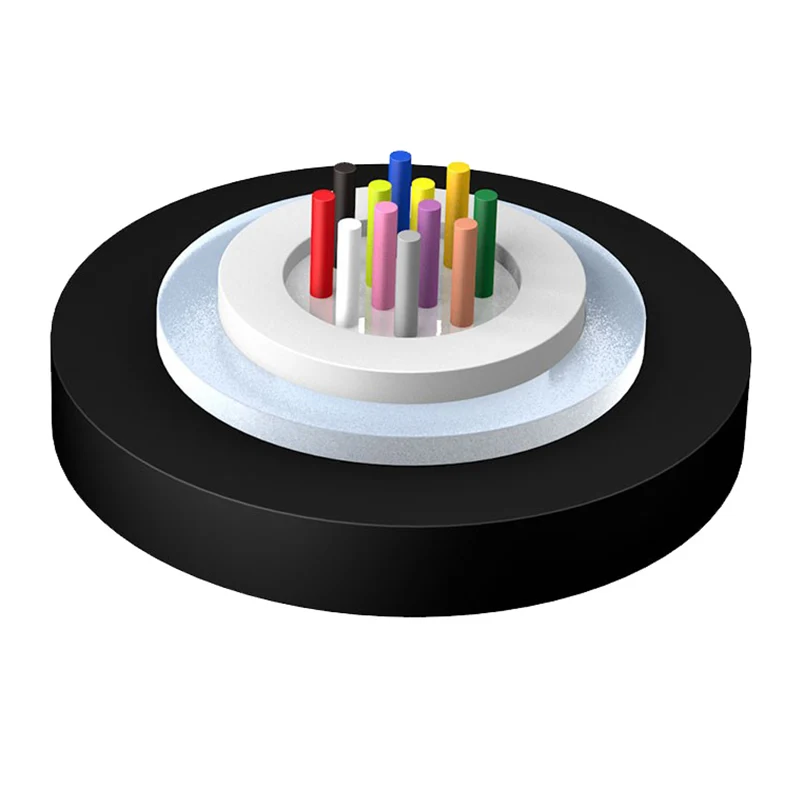

Ukwakheka umdwebo

1.Fibre

I-2.Tube Ukugcwalisa Compound

I-3.Loose Tube

Intambo ye-4.glass

Ijacket ye-5.lszh

Glass Yarn Access Building Fiber Optic Cable

Amapharamitha Ezobuchwepheshe

Imodeli yekhebula

Ukubalwa kwefayibha

Isisindo sekhebula (Ref)

(kg / km)

Amandla asheshayo

Isikhathi eside / esifushane

(N)

Ukuchoboza ukumelana

Isikhathi eside / esifushane

(N / 100mm)

Ukugoba Radius

Dynamic / Static

(mm)

I-ABC-I-ZK-2 ~ 12xn

2 ~ 12

55.5

200/660

300/1000

I-10D / 20D

Abc-i-zk-14 ~ 24xn

14 ~ 24

200/660

300/1000

I-10D / 20D

Izici zokubona

Uhlobo lwefayibha	I-attenuation				Kabanzi	Imodi ye-bandwidth ephumelelayo	I-10 gbit / s ethernet	Umsakazo omncane wokugoba
Into efunekayo	1310 / 1550nm		850 / 1300nm		850 / 1300nm	I-850nm	I-850nm	/
Into efunekayo	Inani elijwayelekile	Inani eliphezulu	Inani elijwayelekile	Inani eliphezulu	850 / 1300nm	I-850nm	I-850nm	/
Umuvo	db / km	db / km	db / km	db / km	MHz.km	MHz.km	m	m
G652d	0.36 / 0.22	0.5 / 0.4	---	---	---	---	---	16
G657a1	0.36 / 0.22	0.5 / 0.4	---	---	---	---	---	10
G657a2	0.36 / 0.22	0.5 / 0.4	---	---	---	---	---	7.5
50/125	---	---	I-3.0 / 1.0	3.5 / 1.5	≥500 / 500	---	---	30
62.5 / 125	---	---	I-3.0 / 1.0	3.5 / 1.5	≥200 / 500	---	---	30
U-m3	---	---	I-3.0 / 1.0	3.5 / 1.5	≥1500 / 500	≥2000	≤300	30
U-m4	---	---	I-3.0 / 1.0	3.5 / 1.5	≥3500 / 500	≥4700	≤550	30

Ukuhamba / Isitoreji / Ukusebenza Kwezinga lokushisa: -20 ℃ - + 60 ℃, lokushisa lokufaka: -5 ℃ - + 50 ℃

Glass Yarn Access Building Fiber Optic Cable
