I-Uni-tube Optical Fiber Composite Overhead Ground Wire

I-Uni-tube optical fibre composite overhead ground wire (OPGW) intambo exubile engaphezulu equkethe i-optical fibre, enemisebenzi eminingi efana nentambo yaphansi kanye nokuxhumana okubonakalayo.

Thumela Uphenyo

Incazelo Yomkhiqizo

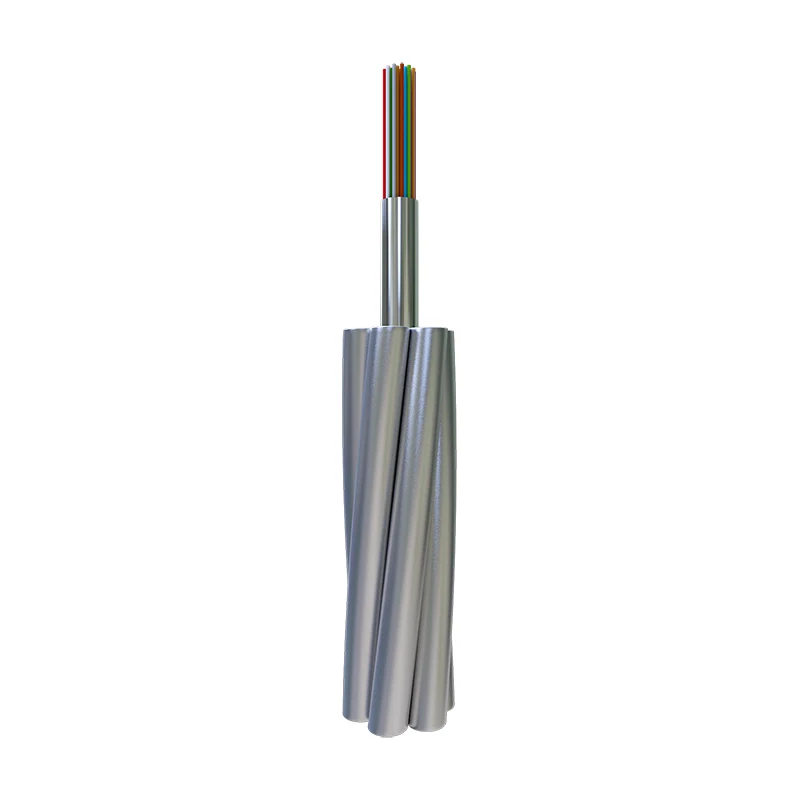

I-Uni-tube Optical Fiber Composite Overhead Ground Wire (OPGW) intambo exubile engaphezulu equkethe i-optical fibre, enemisebenzi eminingi efana nentambo engaphezulu nokuxhumana okubonakalayo. Ngokungafani nezintambo zendabuko ezingaphansi komhlaba, lo mkhiqizo uhlanganisa izingxenye zokuxhumana ze-optical esakhiweni sekhebula, uqaphela ukuhlanganiswa kokuvikelwa komugqa wokudlulisa amandla kanye nokudluliswa kolwazi, okunganciphisa ngempumelelo izindleko zokwakha nokusebenza kanye nokugcinwa kwezindleko zamandla kanye nokuxhumana.

Ububanzi bokusebenza be-Uni-tube Optical Fiber Composite Overhead Ground Wire

I-Orientalfiber Uni-tube Optical Fiber Composite Overhead Ground Wire isetshenziselwa kakhulu i-110KV, 220KV, 500KV, 750KV nemigqa yokuxhumana yezinhlelo zokudlulisa amandla aphezulu aphezulu. Ngokungeziwe embonini yamandla, umkhiqizo ubuye usetshenziswe kabanzi ekuthuthweni kwesitimela, umgwaqo omkhulu, i-petrochemical, izimayini nezinye izimboni ezidinga kokubili ukuvikelwa komhlaba ongaphezulu kanye nokuxhumana kwe-optical ngesivinini esikhulu, ukuhlinzeka ngokusekela kokudlulisa idatha okuzinzile nokuphumelelayo kokukhiqizwa nokusebenza kwezimboni.

Ukwakheka Komkhiqizo

Izingxenye Eziyinhloko

I-Orientalfiber Uni-tube Optical Fiber Composite Overhead Ground Wire isebenzisa idizayini yesakhiwo yesayensi nenengqondo, futhi izingxenye zayo eziyinhloko zihlanganisa iyunithi yefiber optical, i-aluminium alloy wire, insimbi core kanye nesheath yangaphandle. Iyunithi ye-fiber optical ifakwe ku-tube eyodwa, evikela ngokuphumelelayo i-fiber optical ekulimaleni kwangaphandle kwemishini kanye nokuguguleka kwemvelo; i-aluminium alloy wire kanye ne-steel core banesibopho sokuthwala amandla okuqina nokuqinisekisa ukuzinza kwekhebula ngesikhathi sokusebenza phezulu; umgodla wangaphandle wenziwe ngezinto ezisezingeni eliphezulu zokulwa nokuguga kanye nezinto ezimelana nokugqwala, ezinweba impilo yesevisi yomkhiqizo.

Izinzuzo Zesakhiwo

Idizayini yeshubhu eyodwa ye-Uni-tube Optical Fiber Composite Overhead Ground Wire yenza isakhiwo somkhiqizo sihlangane, esilungele ukuthuthwa nokufakwa. Ngesikhathi esifanayo, ukusatshalaliswa okunengqondo kwezingxenye zangaphakathi kuqinisekisa ukuthi umkhiqizo unezakhiwo ezinhle zemishini nokusebenza kokuxhumana, futhi ukwazi ukuzivumelanisa nezimo ezihlukahlukene zangaphandle ezinokhahlo njengomoya onamandla, imvula enkulu, izinga lokushisa eliphezulu nokushisa okuphansi.

Izici Zomkhiqizo

Izimpawu Zokusebenza Kwemishini

● Amandla amahle okuqina: Umkhiqizo ufakwe insimbi enamandla amakhulu kanye ne-aluminium alloy wire, ekwazi ukuthwala amandla amakhulu, ivumelane nezidingo zokufakwa phezulu kwezintambo ezihamba ibanga elide zokudlulisa amandla kagesi, futhi uqinisekise ukuthi ikhebula aliphuki noma liwohloke ngaphansi kwezimo ezijwayelekile zokusetshenziswa.

● Idayamitha encane, isisindo esincane, umthwalo omncane owengeziwe embhoshongweni: Uma kuqhathaniswa nezintambo ezivamile ezihlanganisiwe ezingaphezulu komhlaba, i-Uni-tube Optical Fiber Composite Overhead Ground Wire inobubanzi obuncane nesisindo esilula, esinganciphisa umthwalo owengeziwe kumbhoshongo wokudlulisa, ukunciphisa ukutshalwa kwezimali ekwakhiweni kombhoshongo, futhi kuthuthukise ukuzinza kukonke kolayini wokudluliswa kwamandla.

Izimpawu Zokusebenza Kwezokuxhumana

● Kulula ukwenza i-fiber efanele ubude obungaphezu kweyunithi ye-optical: Isakhiwo seshubhu eyodwa silungele ukuhlela ubude obudlulele be-fiber optical, enganxephezela ngempumelelo ukuguqulwa kobude befiber okubangelwa umehluko wokushisa nokuguqulwa komshini, ukuqinisekisa ukuzinza kokudluliswa kwesignali ye-optical, futhi kunciphise ukuncishiswa kwesignali ngesikhathi sokudlulisa.

● Ukunciphisa isignali ephansi: I-optical fiber ekhethiwe yekhwalithi ephezulu inokusebenza okuhle kokudlulisela, ukuncishiswa kwesignali ephansi, futhi ingakwazi ukubona ukudluliswa kwedatha yebanga elide ngesivinini esiphezulu, ehlangabezana nezidingo zokuxhumana zamasistimu okudlulisa amandla kagesi kanye nezimo ezihlukahlukene zezimboni.

Izimpawu Zokuguquguquka Kwezemvelo

● Ukumelana nokugqwala: Umgodla wangaphandle kanye nezingxenye zensimbi zangaphakathi zomkhiqizo ziphathwa ngobuchwepheshe bokunqanda ukugqwala, obukwazi ukumelana nokuguguleka kwemvula ene-asidi, inkungu kasawoti nezinye izindawo ezinokhahlo, futhi kufanelekile ukusetshenziswa ezindaweni ezisogwini, ezimbonini nakwezinye izindawo ezinezimo zemvelo ezinzima.

● Ukumelana nokuguga nokumelana nezinga lokushisa eliphezulu neliphansi: Impahla yomkhiqizo inokusebenza okuhle kokuguga, ingavumelana nemvelo yokusetshenziswa kwangaphandle yesikhathi eside, futhi ingasebenza ngokujwayelekile ebangeni lokushisa elingu--40℃ kuya ku-80℃, iqinisekise ukusebenza okuzinzile komkhiqizo ezindaweni ezihlukene zesimo sezulu.

I-uni-tube optical fiber composite intambo yaphansi engaphezulu isetshenziselwa ikakhulukazi i-110KV, 220KV, 500KV, 750KV kanye nemigqa yokuxhumana yezinhlelo zokudlulisa amandla aphezulu aphezulu.

Izici

● Amandla amahle okuqina

● Ububanzi obuncane, isisindo esincane, umthwalo omncane owengeziwe embhoshongweni

● Kulula ukwenza iyunithi ye-fiber efanelekile yobude obudlulele

Izimpawu ze-Optical Fiber

	Ukunciphisa				Umkhawulokudonsa		Ukuhlakazeka kwemodi ye-Polarization
	@850nm	@1300nm	@1310nm	@1550nm	@850nm	@1300nm	I-Individual Fiber	Inani Lesixhumanisi Sokuklama (M=20, Q=0.01%)
I-G652D	—	—	≤0.35dB/km	≤0.21dB/km	—	—	≤0.20ps/ km	≤0.1ps/ km
G655	—	—	—	≤0.22dB/km	—	—	≤0.20ps/ km	≤0.1ps/ km
50/125μm	≤3.0dB/km	≤1.0dB/km	—	—	≥600MHz.km	≥1200MHz.km	—	—
62.5/125μm	≤3.5dB/km	≤1.0dB/km	—	—	≥200MHz.km	≥600MHz.km	—	—

Ukwakhiwa kanye nokusebenza

	Ukuhlukanisa	Okubalulekile	Inani
Ukwakha	I-Optical Fiber	I-G652D/G655 njll.	2-48
	I-Protection Tube	Ishubhu yensimbi engagqwali	1.5 - 6 mm
	I-Stranded Line	AS wire/AA wire/Al Rod	1.5 - 6 mm
	Ubukhulu. Ububanzi		18mm
	Ubukhulu. Isigaba esiphambanayo		200mm2
Isici	Ngokwamazinga njenge-DL/T 832, IEC60794-4-10, IEEE1138
	Ubukhulu. Amandla Okuqina (RTS ) (kN)		280
	Ubukhulu. I-Crush Strength (N/100mm)		2200
	Ubukhulu. Amandla Wamanje Amafushane (40℃-200℃)(kA2s)		100
	Okuncane. I-Bending Radius (Amandla)		20D
	Okuncane. I-Gonga Radius (I-Static)		15D
Ukusebenza Kwemvelo	Ukufakwa (℃)		-10 ukuze +50
	Ezokuthutha nokusebenza (℃)		-40 ukuze +65

Qaphela: D ingububanzi bekhebula.

Uhlobo Oluthile Nedatha Yobuchwepheshe

Cha.	Idatha Yezobuchwepheshe
Cha.	Uhlobo Lomkhiqizo	Uhlobo Lwesakhiwo	Ubukhulu. I-Fiber Count	Isigaba se-AS Wire (mm²)	Ububanzi (mm)	Isisindo sekhebula (kg/km)	Linganisa Amandla Okuqina (kN)	20℃DC Ukumelana (Ω/km)	Isikhathi Esifushane Amandla Amanje (40-200℃ kA2.s)
1	OPGW-24B1.3-40-[51;9]	6/3.0/20AS, Iyunithi yokubona 1/3.0	24	≈40	9.0	≤304	≥51	≤2.10	≥9
2	OPGW-24B1.3-50-[58;11.5]	6/3.2/20AS, Iyunithi yokubona 1/3.2	24	≈50	9.6	≤345	≥58	≤1.82	≥11.5
3	OPGW-48B1.3-70-[77;24]	6/3.8/20AS, Iyunithi yokubona 1/3.8	48	≈70	11.4	≤475	≥77	≤1.30	≥24
4	OPGW-48B1.3-70-[42;38]	6/3.8/40AS, Iyunithi yokubona 1/3.8	48	≈70	11.4	≤340	≥42	≤0.70	≥38

Izimpawu Zokuhlola Zemishini Nezemvelo

Into	Indlela Yokuhlola	Izimfuneko
Ukushuba	I-IEC 60794-1-2-E1 Layisha: ngokuya ngesakhiwo sekhebula Ubude besampula: abukho ngaphansi kuka-10m, ubude obuxhunyiwe bungekho ngaphansi kuka-100m Ubude besikhathi: 1min	40%RTS alukho uhlobo lwefiber eyengeziwe (0.01%), akukho ukuncishiswa okwengeziwe (0.03dB). 60%RTS uhlobo lwefibre≤0.25%,ukuncishiswa okwengeziwe≤0.05dB (Akukho ukuncishiswa okwengeziwe ngemva kokuhlolwa).
Gcoba	I-IEC 60794-1-2-E3 Umthwalo: ngokwethebula elingenhla, amaphuzu amathathu Isikhathi sobude besikhathi: 10min	Ukunciphisa okwengeziwe ku-1550nm ≤0.05dB/fibre; Akukho monakalo ezintweni
Ukungena Amanzi	I-IEC 60794-1-2-F5B Isikhathi : Ihora eli-1 Ubude besampula: 0.5m Ubude bamanzi: 1m	Akukho ukuvuza kwamanzi.
I-Temperature Cycling	I-IEC 60794-1-2-F1 Ubude besampula: Abukho ngaphansi kuka-500m Ibanga lokushisa: -40 ℃ ukuya +65 ℃ Imijikelezo: 2 Isikhathi sokuhlala sokuhlolwa kokuhamba ngebhayisikili: 12h	Ushintsho ku-attenuation coefcient izoba ngaphansi kuka-0.1dB/km ngo-1550nm.
