I-Uni-Tube ANOLLALL 73 Sheath Light-Weight Light-Weight Light-Weight Lighting Anti-Roodent Fiber Optic Cable

Isakhiwo se-Uni-Tube An-Isibani sokukhanyisa esikhanyayo esingu-73 Sheath Light-Light-Light-Light-Light-Light-Gcibi fiber optic ukubeka i-fiber eyodwa ye-fiber noma i-multi-mode fiber touble ephathekayo ye-polyedus polyester eyenziwe nge-polteproof polyroof. Izinto ezivimba amanzi zingezwa ku-tube evulekile ukuqinisekisa ukusebenza kwamanzi ngentambo yokukhanya. Ishubhu elixegayo lisongwe nge-fr rod, futhi ungqimba we-polyethylene waner sheath ukhishwe kwi-Cable Core. Ngemuva kokuthi ibhande le-FRP lisongelwe ngokuhamba ngezinyawo, i-polyethylene yangaphandle ye-Outer Sheath ikhishwe ukuze kwakhiwe ikhebula.

Thumela Uphenyo

Incazelo Yomkhiqizo

Izici

Izakhiwo ezinhle ze-mehendi kanye nezinga lokushisa

Ukuphikiswa okuhle kwe-hydrolysis namandla aphezulu

I-tube ekhethekile yokugcwalisa ishubhu iqinisekisa ukuvikelwa okubucayi kwe-fiber

Ukumelana okuhle kwengcindezi nokuthamba

Ukusonga i-FRP kuqinisekisa amandla ashubile wekhebula futhi kuhlinzeka ngokuvikelwa okuhle kweshubhu evulekile

I-FRP ne-FRP Tape Armor yenza ikhebula libe nokusebenza okuhle kakhulu kwe-rodent

I-Polyethylene (PE) Sheath inokumelana kahle nemisebe ye-UV

Ububanzi obuncane, isisindo esikhanyayo nokufakwa okunobungane

Amazinga

Intambo ye-GyQfxty73 ihambisana ne-ydt ejwayelekile 769-2010 kanye ne-IEC 60794-1.

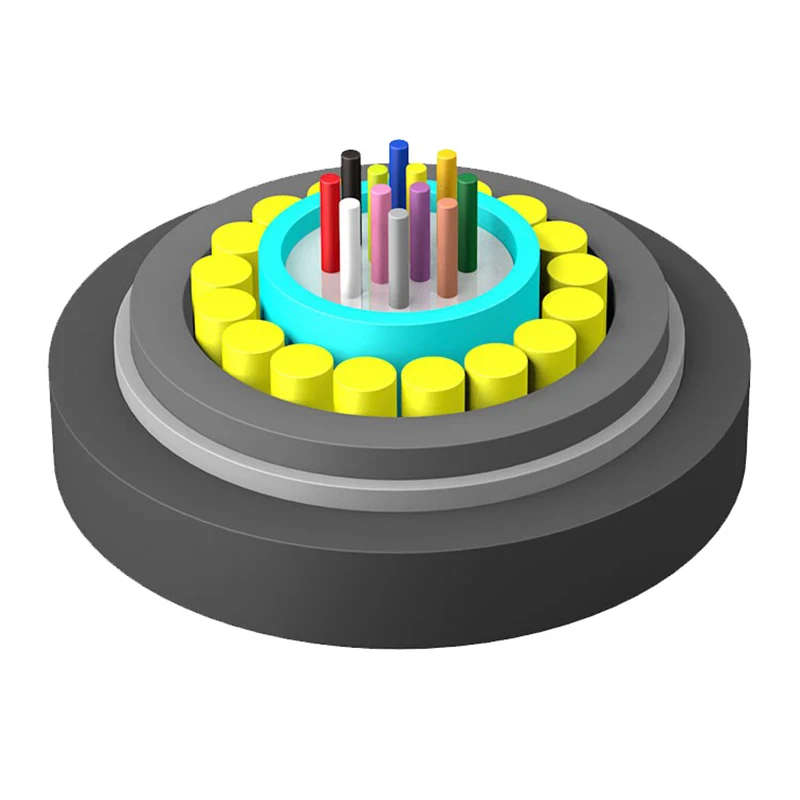

Ukwakheka umdwebo

1.Fibre

I-2.Tube Ukugcwalisa Compound

I-3.Loose Tube

4.frch

Indwangu yokugcwalisa engu-5.Cable

6.Pe umvini wangaphakathi

7.Water-blocting impahla

Itheyiphu ye-8.frds

9.Pe Sheath Outer

Uni-tube Non-metallic 73 Sheath Light-weight Lighting Anti-rodent Fiber Optic Cable

Amapharamitha Ezobuchwepheshe

Uhlobo lwekhebula (Inyuswe yimicu emi-2)	Ukubalwa kwefayibha	Isisindo sekhebula (Ref) (kg / km)	Amandla asheshayo Isikhathi eside / esifushane (n)	Ukuchoboza ukumelana Isikhathi eside / esifushane (n / 100mm)	Ukugoba Radius I-Static / Dynamic (mm)
Gyqfxty73-2 ~ 12xn	2 ~ 12	97	600/1500	1000/3000	I-10 / 20D
Gyqfxty73-12 ~ 24xn	14 ~ 24	111
Gyqfxty73-26 ~ 36xn	26 ~ 36	148

Isitoreji / Ukusebenza okusebenzayo: 40 ℃ - + 70 ℃

Izici zokubona

Uhlobo lwefayibha	(+ 20 ℃)				Ibandlawi		Isithambisi sezinombolo	Cable cut-off wavelength λcc
Uhlobo lwefayibha	@ 850nm	@ 1300nm	@ 1310NM	@ 1550nm	@ 850nm	@ 1300nm	Isithambisi sezinombolo	Cable cut-off wavelength λcc
G.652	---	---	≤0.36DB / km	≤0.22DB / km	---	---	---	≤1260nm
G.655	---	---	≤0.40db / km	≤0.23DB / km	---	---	---	≤1450nm
50 / 125μm	≤3.3DB / km	≤1.2DB / km	---	---	≥500mhz · km	≥500mhz · km	0.200 ± 0.015na	---
62.5 / 125μm	≤3.5DB / km	≤1.2DB / km	---	---	≥200mhz · km	≥500mhz · km	0.275 ± 0.015na	---

Qaphela:

a. I-Suffiix XN isho uhlobo lwefayibha

b. Ukuhlelwa kombala kwe-fiber ne-tube kuchaziwe etafuleni lokuhlonza umbala

c. I-Uni-Tube An-Isisindo Esingesisindo se-73 Sheath Light-Weight Light-Light-Light-Light-Weight Light-REFT Fiber Optic Cable akufanele igcine endaweni yangaphandle engaphezu kwezinyanga eziyisithupha ukuze igcine i-Cable Rel State

Isicelo: Duct / Aerial

Hot Tags: I-Uni-Tube ANOLLALL 73 Sheath Light-Weight Light-Weight Light-Weight Lighting Anti-Roodent Fiber Optic Cable
