Ikhebula le-Multi-enenhloso yokuphumula ye-fiber optic cable

I-Optial-Optive enezinhloso eziningi ze-Fiber Optic Cable isebenzisa (I-Optial-buffered-buffered-buffered fiber, ama-armid ukuqinisa i-conder, kanti amayunithi ama-polyvinyl chlogue (pvc) asontekile ngokwesimo se-polyvinyl (I-LSZH, intuthu ephansi, i-halogen-free, flame-retardant) Sheath ikhishwe ngaphandle.

Thumela Uphenyo

Incazelo Yomkhiqizo

Izici

Isakhiwo sekhebula elisontekile ne-non-Centre CountreCement ResureFement CoreFement Core Inika amandla ikhebula ukumelana nengxabano enkulu

Izinto zangaphandle zekhebula le-optic le-multi-inhloso ye-fiber liwukumelana nokugqwala, okungavinjelwa kwamanzi, ukumelana namalangabi, ilangabi-imbuyiselo nemvelo kanye nemvelo.

I-Aramid yarn njengelungu elinamandla lenza ikhebula libe namandla amahle kakhulu

Izinja

Ngaphakathi noma yikuphi ukusatshalaliswa kwe-inhloso ye-inhloso

Ikhebula lokusabalalisa emuva

Amazinga

Hlangana namazinga we-yd / t 1258.4, i-ICA-596, i-GR-4096, IEC 607794-20 / 21, njll Ngaphezu kwemikhiqizo evamile ye-PVC, kukhona nemikhiqizo esedlule isitifiketi se-Ul of; Imikhiqizo ye-LSZH Sebenzisa izinto ezahlukahlukene ukuze uhlangane neEC60332-1 noma i-IEC60332-3C.

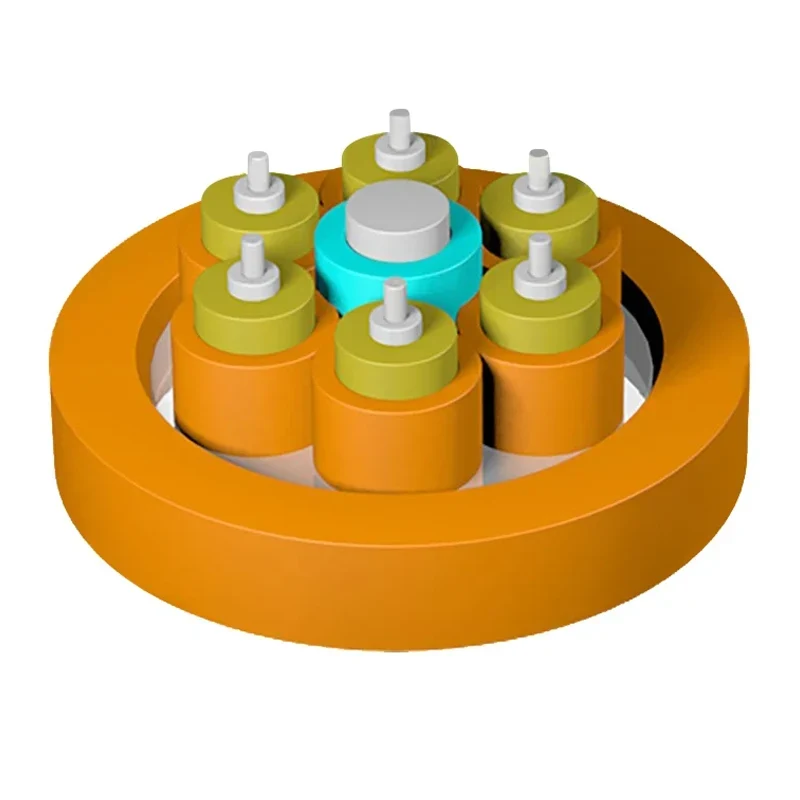

Ukwakheka umdwebo

1.I-fiber buffer

I-2.aramid yarn

Ilungu lamandla we-3.frfrp

4.Sununit Jacket

I-5.JackET

Multi-Purpose Break-out Cable

Amapharamitha Ezobuchwepheshe

Imodeli yekhebula	Ububanzi bekhebula (mm)	Isisindo sekhebula (Ref) (kg / km)		Amandla asheshayo Isikhathi eside / esifushane (N)	Ukuchoboza ukumelana Isikhathi eside / esifushane (N / 100mm)	Ukugoba Radius Dynamic / Static (mm)
Imodeli yekhebula	Ububanzi bekhebula (mm)	Ijekethi ye-PVC	Ijekethi ye-lszh	Amandla asheshayo Isikhathi eside / esifushane (N)		Ukugoba Radius Dynamic / Static (mm)
04	7.4 ± 0.5	50	56	130/440	300/1000	20D / 10D
06	8.4 ± 0.5	66	74	200/660	300/1000	20D / 10D
08	9.8 ± 0,5	91	101	200/660	300/1000	20D / 10D
12	12.4 ± 0.5	140	155	200/660	300/1000	20D / 10D
24	14.4 ± 0.5	181	201	400/1320	300/1000	20D / 10D
36	16.4 ± 0.5	208	255	400/1320	300/1000	20D / 10D
48	19 ± 0.5	280	344	400/1320	300/1000	20D / 10D

Izici zokubona

Uhlobo lwefayibha	I-attenuation				Kabanzi	Imodi ye-bandwidth ephumelelayo	I-10 gbit / s ethernet	Umsakazo omncane wokugoba
Into efunekayo	1310 / 1550nm		850 / 1300nm		850 / 1300nm	I-850nm	I-850nm	/
Into efunekayo	Inani elijwayelekile	Inani eliphezulu	Inani elijwayelekile	Inani eliphezulu	850 / 1300nm	I-850nm	I-850nm	/
Umuvo umuvo	db / km	db / km	db / km	db / km	MHz.km	MHz.km	m	m
G652d	0.36 / 0.22	0.5 / 0.4	---	---	---	---	---	16
G657a1	0.36 / 0.22	0.5 / 0.4	---	---	---	---	---	10
G657a2	0.36 / 0.22	0.5 / 0.4	---	---	---	---	---	7.5
50/125	---	---	I-3.0 / 1.0	3.5 / 1.5	≥500 / 500	---	---	30
62.5 / 125	---	---	I-3.0 / 1.0	3.5 / 1.5	≥200 / 500	---	---	30
U-m3	---	---	I-3.0 / 1.0	3.5 / 1.5	≥1500 / 500	≥2000	≤300	30
U-m4	---	---	I-3.0 / 1.0	3.5 / 1.5	≥3500 / 500	≥4700	≤550	30

Multi-Purpose Break-out Fiber Optic Cable
