I-Mobile Fiber Optic Cable MOC

I-Mobile Fiber Optic Cable MOC evela e-Orientalfiber China Factory yakhelwe ukwenza lula i-branching kanye nokukhipha i-fiber ngesikhathi sokufakwa. Isebenzisa amashubhu amancane njengamayunithi okubona, le ntambo isekela ukuphathwa kwefayibha ehlelekile nokufinyelela okusheshayo. Njengomhlinzeki Nomkhiqizi onokwethenjelwa, sigxila ekwakhiweni kwesakhiwo esizinzile kanye nekhwalithi yokukhiqiza engaguquki ukuze sihlangabezane nezidingo ezihlukahlukene zekhebula zasendlini.

Thumela Uphenyo

Incazelo Yomkhiqizo

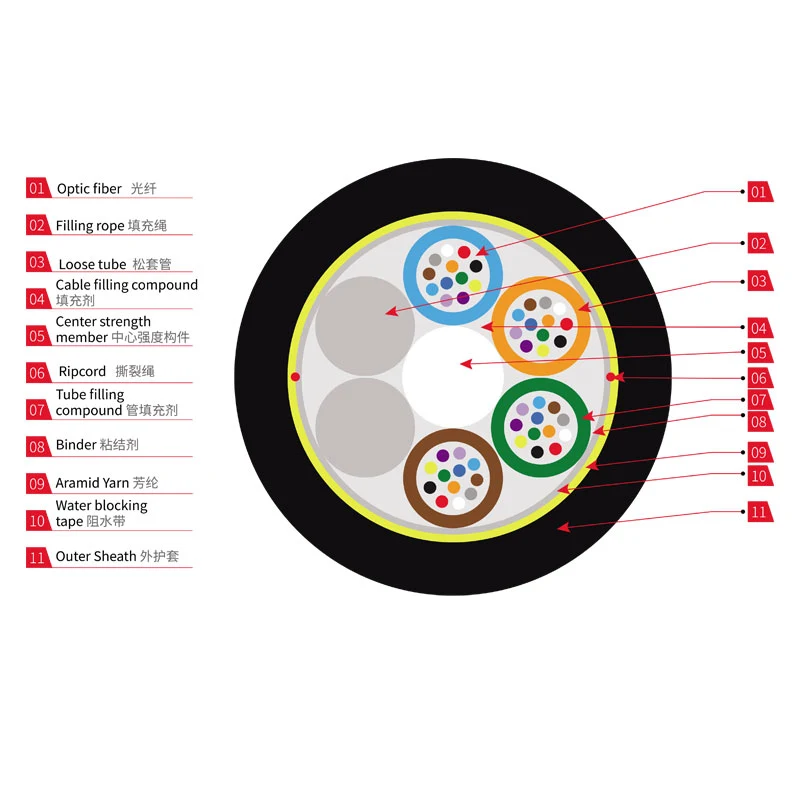

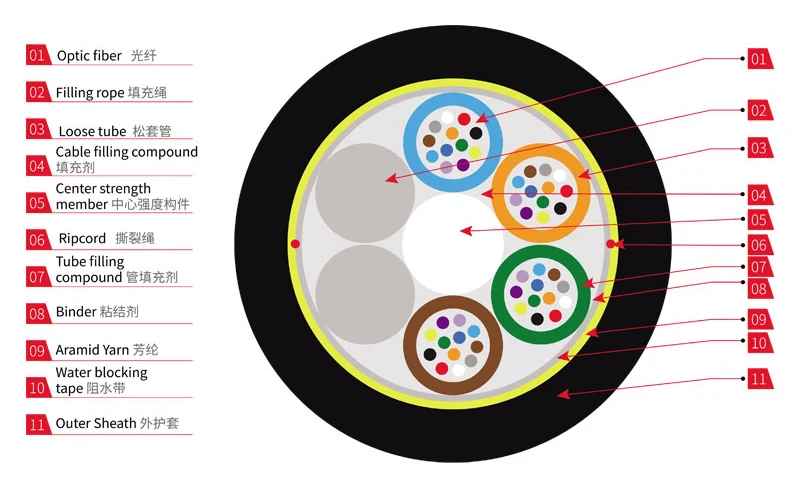

Idizayini Yesakhiwo

Ukwakhiwa Okuyinhloko

Amayunithi e-Micro-tube akhiwe ngemicu yokubona nezinto zokuzivikela
Umgodla wangaphandle we-LSZH wesigaba esikhethekile
Amalungu amabili aqinile e-FRP ukuze kuqiniswe
Ukumaka okuqondile emgodleni ukuze uvuleke kalula

Inhloso Yokuklama

Thuthukisa ukusebenza kahle kokuphathwa kwe-fiber
Sekela ukufinyelela okusheshayo kanye negatsha kumanethiwekhi angaphakathi
Gcina ukusimama kwesakhiwo ngesikhathi sokufakwa nokusetshenziswa

Izici Eziyinhloko

Ukufakwa Okuguquguqukayo

Usayizi omncane nesisindo esincane sokuphatha kalula
Umzila oqondile kumashafu aqondile nezikhala ezivaliwe
Isekela ukusika okusheshayo kanye nokukhipha i-fiber

Ukuphathwa Kwe-Fiber Okuphumelelayo

Idizayini ye-Micro-tube yenza ukukhonjwa kwefayibha kube lula
Ukuhlanganisa kalula ngaphandle kokulimaza imicu eseduze
Ifanele ukuthunyelwa kwenethiwekhi okufakwe kusiteji

Ukusebenza Kokuphepha

Umgodla ongenantuthu ophansi we-halogen unciphisa ingozi yomlilo
Izinto ezivimbela ilangabi ezifanele izindawo zokwakha

Ukwethembeka Komshini

Ukuqiniswa kwe-FRP kuthuthukisa amandla okuqina
Ukusebenza okuzinzile ngaphansi kokugoba nokucindezelwa
Ukuziphatha okungaguquki kukho konke ukuhlukahluka kwezinga lokushisa

Imininingwane Yezobuchwepheshe

I-Mobile Fiber Optic Cable MOC isekela izinketho zokumisa eziguquguqukayo:

Uhlobo lwe-Fiber: G652D / G657A ngokuzithandela
I-Fiber count: ingenziwa ngokwezifiso (ngokusekelwe ekwakhiweni kwephrojekthi)
Isakhiwo: i-micro-tube sub-unit design
Ilungu lamandla: i-FRP ehambisanayo ekabili
Umgodla wangaphandle: Impahla ye-LSZH ye-flame retardant
Ububanzi bekhebula: Idizayini ehlangene yomzila wangaphakathi
Izinga lokushisa lokusebenza: ngokuvamile -20°C kuya +60°C

Ngokusetshenziswa okuhlelekile kwefayibha yasendlini, i-Mobile Fiber Optic Cable MOC ihlinzeka ngesixazululo esisebenzayo ngokufaka okuvumelana nezimo, ukuphathwa kwefayibha ehlelekile, nokusebenza okungaguquki kokusebenza.

Isicelo somkhiqizo

FTTH izintambo eziqondile zasendlini

Ukwakha i-trunk wiring optical cable

Izici zomkhiqizo

Idizayini enhle yesakhiwo, kulula ukuyigaxa futhi ikhishwe

Usayizi omncane, isisindo esincane, kulula ukuyifaka

Umgodla ongenantuthu ophansi we-halogen uqinisekisa ukubambezeleka okuhle komlilo

Ukulawulwa kwenqubo okunembile kuqinisekisa ukusebenza komshini nokushisa

Ifaneleka kakhulu ukusika, ukukhipha, ukuvulwa kwe-skylight

Imingcele Yezobuchwepheshe

Uhlobo Lwekhebula	Ububanzi bekhebula	Isisindo sekhebula	Amandla Okuqina Okude/Isikhathi Esifushane	I-Crush Resistance Long/Short	I-Gonga Radius Dynamic/Static	Izinga lokushisa lesitoreji
Uhlobo Lwekhebula	(mm)	(kg/km)	(N)	(N)	(mm)	(℃)
I-GJPFWQH-24 (4cx6s)	6.5±0.2	40	200/500	200/1000	20D/10D	-20°C ~ +60
I-GJPFWQH-48 (4cx12s)	8.5±0.2	60	200/500	200/1000	20D/10D	-20°C ~ +60
I-GJPFWQH-96 (8cx12s)	10.5±0.2	90	200/500	200/1000	20D/10D	-20°C ~ +60
I-GJPFWQH-144	10.5±0.2	90	300/500	200/1000	20D/10D	-20°C ~ +60
I-GJPFWQH-144	13.5±0.2	145	300/500	200/1000	20D/10D	-20°C ~ +60

Qaphela: Izinga lokushisa lokuthutha/lesitoreji: -20°C ~ +60°C

Ubude obujwayelekile: 2000m; obunye ubude buyatholakala.

Uhlobo lwefiber: G652D, G657A1, G657A2, 50/125, 62.5/125, OM3, OM4, OM5

Mobile Fiber Optic Cable MOC

Izinhlelo zokusebenza

· Amasistimu ezintambo eziqondile ze-FTTH zasendlini

· Ukwakhiwa kwe-trunk optical cable deployment

· Amakamelo okuxhumana ngocingo kanye nemishini yokukhuphukela phezulu

· Ukudluliswa kwedatha ezinhlelweni ze-LAN

· Ukuthuthukiswa kwenethiwekhi yasendlini kanye namaphrojekthi wokunweba

I-Mobile Fiber Optic Cable MOC ifaneleka ngokukhethekile kumaphrojekthi adinga ukufakwa kwamagatsha njalo kanye nokwabiwa kwefayibha eguquguqukayo, njengezakhiwo ezinezitezi eziningi kanye nokufakwa kwesiteji.

Izinzuzo Ekusetshenzisweni Okungokoqobo

· Uma kuqhathaniswa nezintambo zendabuko zasendlini, kuvumela ukukhishwa kwefayibha kalula

· Ithuthukisa ukusebenza kahle kokufaka ezindaweni eziminyana kakhulu

· Yehlisa ubungozi bokulimala kwefayibha ngesikhathi sokusebenza kwegatsha

· Isekela ukunwetshwa kwenethiwekhi kwesikhathi esizayo ngaphandle kokushintsha ikhebula eliyinhloko

I-application Scenarios & Industry UseIn izakhiwo zezentengiso, i-Mobile Fiber Optic Cable MOC isiza ukwenza lula ukukhebula okuqondile nokunciphisa isikhathi sokufaka. Kumaphrojekthi okuhlala e-FTTH, isekela ukusatshalaliswa kwefayibha okuhleliwe kuzo zonke izitezi. Uma kuqhathaniswa namakhebuli avamile anesibhafa esiqinile, lo mklamo unikeza ukuguquguquka okungcono kokulungisa nokuthuthukiswa.
