Intambo yensimbi eqinile inamandla amakhulu amakhulu, asiza ukusekela ukubekelwa phansi nokunciphisa izindleko zokufaka.
Ukusebenza okuhle kwemishini nokushisa
Izinto ezivulekile zeshubhu zinokuqina okuhle kwe-hydrolysis namandla aphezulu
I-tube ekhethekile yokugcwalisa ishubhu iqinisekisa ukuvikelwa okubucayi kwe-fiber
Izinyathelo ezilandelayo zithathwa ukuze kuqinisekiswe amanzi angenantambo:
-Izintambo ezisetshenziswa njengelungu eliphakathi lamandla
Ukugcwaliswa kweshubhu le-leloose, Compound
-100% Cable Core Gcwalisa
-I-Isithiyo somswakama-umswakama
Intambo ye-Gytc8a ihambisana ne-yd / t 1155 ejwayelekile kanye ne-IEC 607944-1.

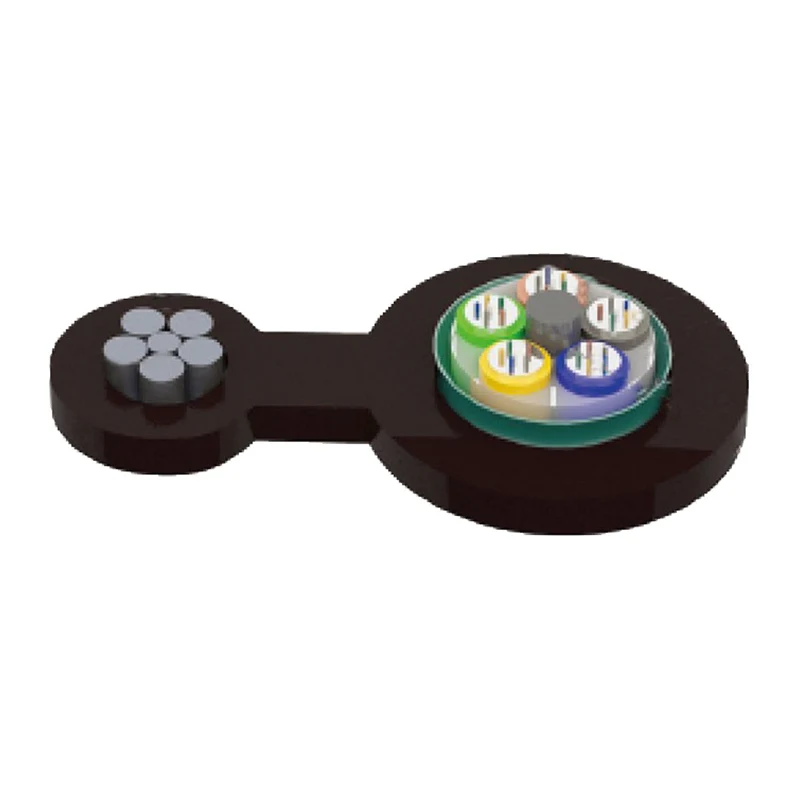

1. Izintambo ezihlanzekile
2. Pe Sheath
3. I-fiber
4. I-Tube Ukugcwalisa I-Compound
5. I-tube evulekile
6
7. Ilungu eliphakathi lamandla
8. Apl
9. I-Sheath
|
Uhlobo lwekhebula (Inyuswe yimicu emi-2) |
Ukubalwa kwefayibha |
Amashubhu |
Amapliki |
Isisindo sekhebula (Ref) (kg / km) |
Amandla asheshayo Isikhathi eside / esifushane (N) |
Ukuchoboza ukumelana Isikhathi eside / esifushane (N / 100mm) |
Ukugoba Radius I-Static / Dynamic (mm) |
|
Gytc8a-2 ~ 6xn |
2 ~ 6 |
1 |
4 |
158 |
Ngokusho kobubanzi bensimbi yensimbi yensimbi |
300/1000 |
I-10D / 20D |
|
Gytc8a-8 ~ 12xn |
8 ~ 12 |
2 |
3 |
158 |
|||
|
Gytc8a-14 ~ 18xn |
14 ~ 18 |
3 |
2 |
158 |
|||
|
Gytc8a-20 ~ 24xn |
20 ~ 24 |
4 |
1 |
158 |
|||
|
Gytc8a-26 ~ 30xn |
26 ~ 30 |
5 |
0 |
158 |
|||
|
Gytc8a-32 ~ 36xn |
32 ~ 36 |
6 |
0 |
167 |
|||
|
Gytc8a-38 ~ 48xn |
38 ~ 48 |
4 |
1 |
172 |
|||
|
I-Gytc8a-50 ~ 60xn |
50 ~ 60 |
5 |
0 |
172 |
Isitoreji / Ukusebenza okusebenzayo: 40 ℃ - + 70 ℃
|
Uhlobo lwefayibha |
(+ 20 ℃) |
Ibandlawi |
Isithambisi sezinombolo |
Cable cut-off wavelength λcc |
||||
|
@ 850nm |
@ 1300nm |
@ 1310NM |
@ 1550nm |
@ 850nm |
@ 1300nm |
|||
|
G.652 |
--- |
--- |
≤0.36DB / km |
≤0.22DB / km |
--- |
--- |
--- |
≤1260nm |
|
G.655 |
--- |
--- |
≤0.40db / km |
≤0.23DB / km |
--- |
--- |
--- |
≤1450nm |
|
50 / 125μm |
≤3.3DB / km |
≤1.2DB / km |
--- |
--- |
≥500mhz · km |
≥500mhz · km |
0.200 ± 0.015 vele |
--- |
|
62.5 / 125μm |
≤3.5DB / km |
≤1.2DB / km |
--- |
--- |
≥200mhz · km |
≥500mhz · km |
0.275 ± 0.015 vele |
--- |
Qaphela:
a. I-Suffiix XN isho uhlobo lwefayibha
b. Ukuhlelwa kombala kwe-fiber ne-tube kuchaziwe etafuleni lokuhlonza umbala
c. Ikhebula akufanele ligcine imvelo yangaphandle ngaphezu kwezinyanga eziyi-6 ukuze i-Cable reel isimo esihle
