Ungayifaka kanjani i-Intermanned Aerial Vehic Fiber Optic?

Ukufaka Ukufakelwa

1. Ukufakwa kwe-Fiby Optic Disk, i-Fiber Optic Disk Outlet nozzle kufanele ibe kude kakhulu ngangokunokwenzeka kusuka ku-propeller, kodwa ukunaka okwengeziwe kokudonsela phansi kwendiza. Isikhungo sokudonsela phansi kwendiza kufanele sibheke ngaphezulu.

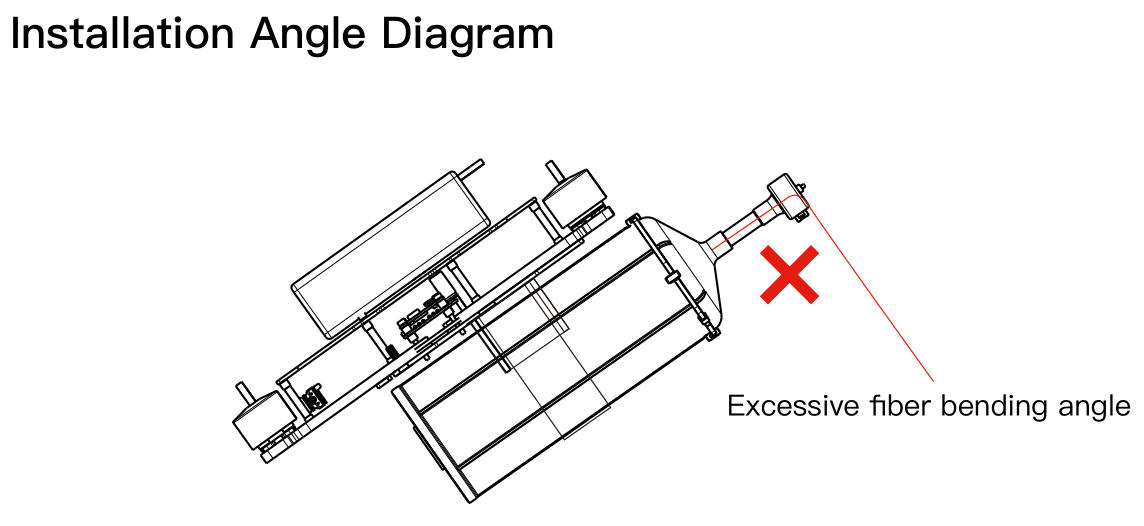

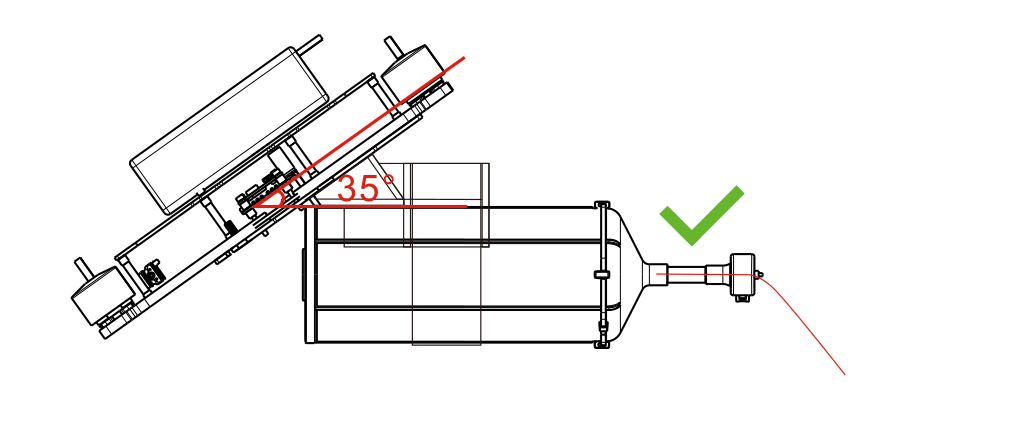

1. Ukufakwa kwe-Fiber Optic Disk kufanele kususelwe e-angle yendiza efudunyekayo, ubakaki okhuphukayo kufanele ugodliwe nge-angle ethile (njengoba kukhonjisiwe kwisibalo). Ukufaka i-angle ekhuphukayo kufanele kube eduze kwe-angle evuthayo, ukuze i-anglet ye-fiber optic disk angle iqonde.

1. I-Fibre Optic Winking isebenzisa i-glue ekhethekile, amamitha okuqala angama-200 webanga indawo yesicelo se-glue, kule ndawo ijubane lendiza lendiza kufanele lilawulwe ngejubane elingu-0.5 mph. Ijubane lendiza lendiza kufanele lilawulwe kungakapheli ama-30km / h noma ama-8m / s ukugwema indiza esezingeni eliphakeme endaweni ye-glue.

Ukulungiselela ngaphambi kokusebenzisa idiski ye-Optical

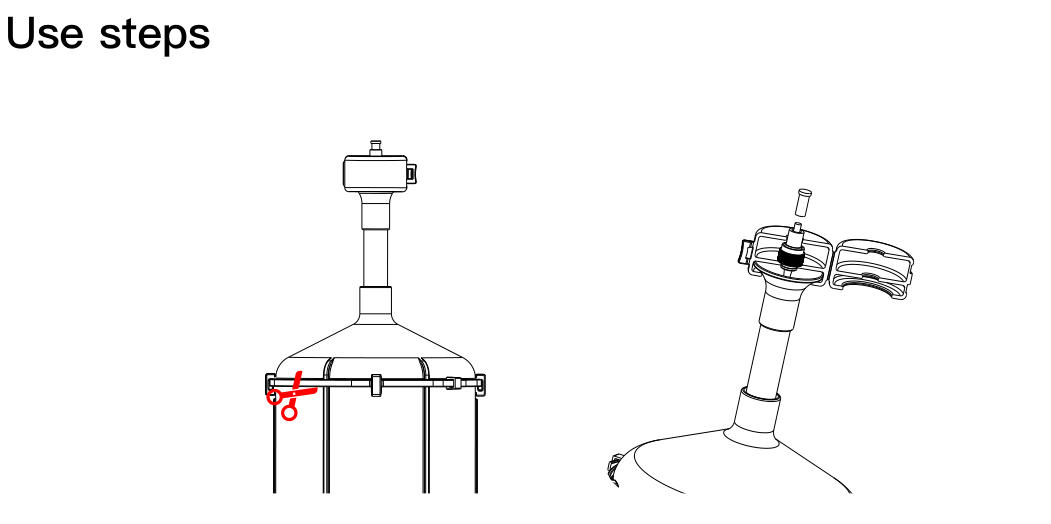

1. Qiniseka ukuthi ususe uthayi lokuvikela izinto zokuhamba kanye nokuvikelwa okungu-4 ngaphambi kokusebenzisa idiski yefayibha ye-Optical fiber.
2. (Qaphela: Ungathathi ibhande ngokuqondile kufayibha lizophulwa.)
3. I-Optical fiber disk ephuma ku-FC Fiber Optic Port ye-Shell evikelayo ngaphambi kokusebenzisa isidingo sokususa, khipha i-fiber optical emhlabathini ekugcineni kwemodyuli.

Ukuxhumana okungekho emhlabathini

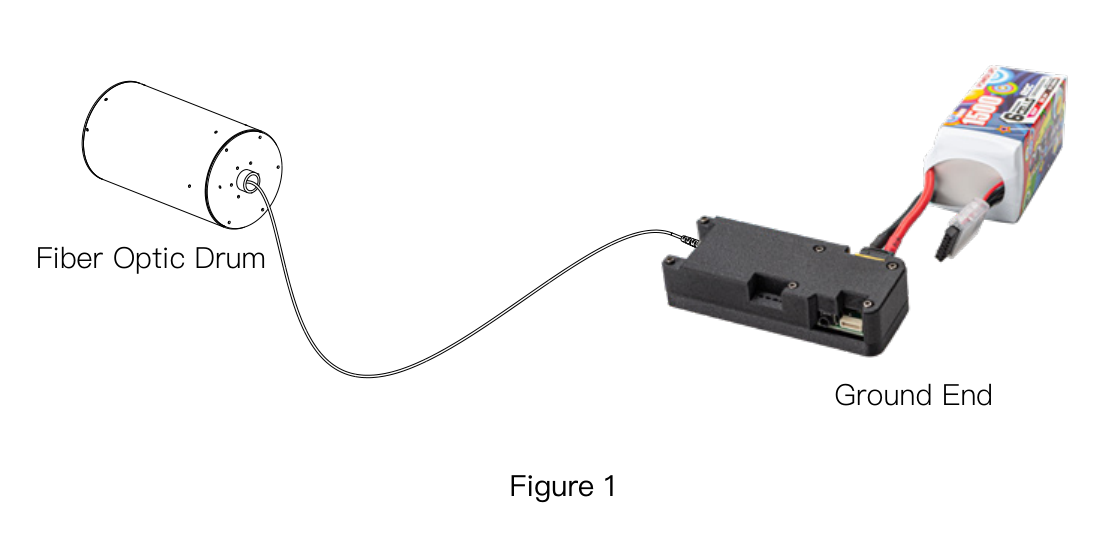

1. Xhuma ikhebula le-SH1.0 ukusuka esibhakabhakeni esisesilawulweni sendiza njengoba kukhonjisiwe ku-Diagraph "Imodi yokuxhumeka ebhulaweni).
2. Xhuma umugqa we-sh1.0 umugqa owemukelayo kanye ne-imephu transmitter.
3. Lungisa isiphetho sezulu kanye ne-fiber optic disk, naka i-fiber optic nozzle ngangokunokwenzeka kude kusuka ku-UAV Prapeller ukugwema ingozi yokuheha.
4. Xhuma i-fiber optic harness, xhuma amachweba we-FC kuwo womabili ama-Exs we-Fiber Optic Disk ethekwini le-FC esibhakabhakeni ekugcineni kanye ne-FC Port emhlabathini ekugcineni, bese uqaphela ukuthi isiphetho se-nozzle sixhunyiwe kwi-FC Port emhlabathini ekugcineni.

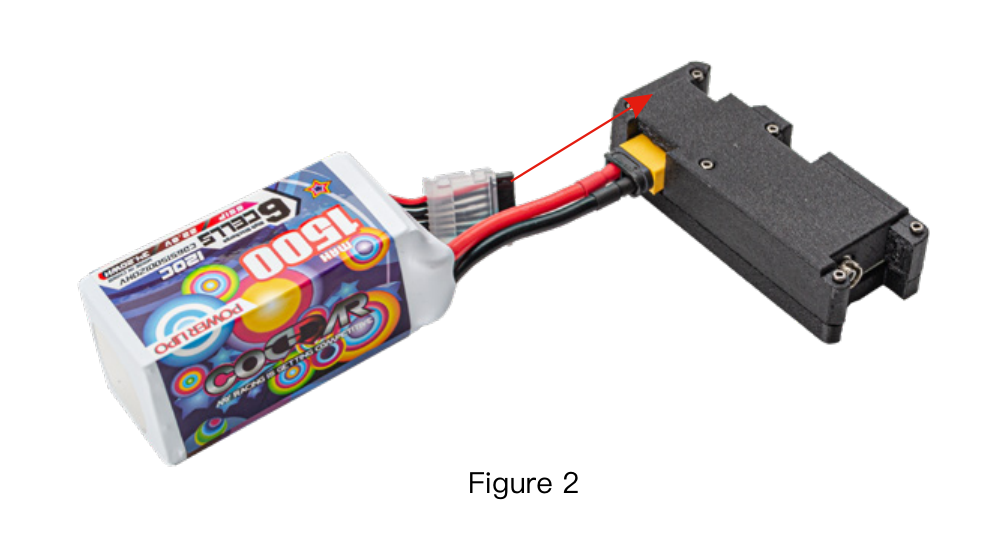

5. Faka ibhethri le-lithium lomhlabathi ekugcineni esixhumeni sokuphela komhlaba ngemuva kokuthi ikhokhiswe ngokuphelele. (Njengomfanekiso 2)

Izinyathelo zokuzivikela

1. I-voltage yokufaka 11.1-26V ingaphakathi kobubanzi obuphephile, sicela ungeqi noma uwe ngezansi komkhawulo kagesi, ungaguquki izigxobo ezinhle nezingezinhle.
2. Ungenzi i-Optical fiber Collelling Circle, ukugwema ukusikwa yizinto ezibukhali futhi uholele ekuqhekekeni kwe-fiber.
3. Naka ukuvikelwa kwezixhumi ze-fiber optic nezindawo zokuhlangana ze-FC, gwema uthuli namafutha namanzi, gcina ikhava yokuvikelwa kwesixhumi esisontekile.
4. Gcina endaweni epholile, eyomile futhi elula.
5. Isakhiwo se-Fiber Optic Disc Disclision, thatha ngobumnene bese ubeka, isitoreji esithe mpo.
